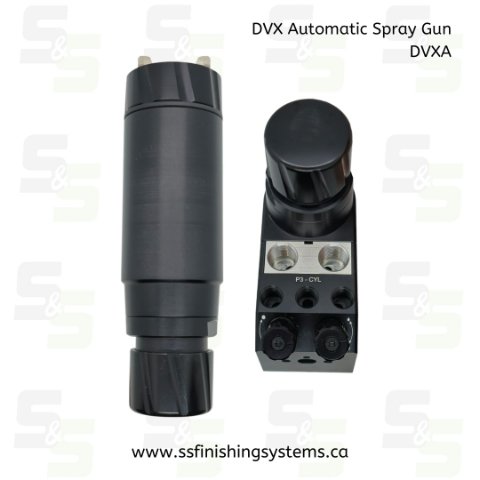

DVXA Automatic Spray Guns

Precision-built equipment for professional finishing.

Proudly Canadian
🔍
DVXA Automatic Spray Guns

DVXA Automatic Spray Guns

Price range: $2,569.40 through $2,650.60

Next Level Design To Maximize Next Level Performance

Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.
SKU: Parent-DVXA Automatic Spray Guns Category: Tag: Brand:

DVX automatic air spray guns feature a new manifold design with cam-lock quick release plus easier spaced fluid and air inlets. A redesigned back end allows for easy changes and maintenance.

New Manifold Design
Featuring cam-lock quick release, easier spaced fluid and air inlets. Installation is improved with adaptable air adjustments for remote/manual fan and atomization adjustments, single air inlet adjustments, and circulation plugs standard.

Redesigned Back End
Racket and fixed needle travel as standard selections. Less turns for full adjustment and easier to remove housing for repair and maintenance. Fluid packing is also changeable without having to remove the fluid manifold from the body.

  • Better Finish:Reduces orange peel and eliminates mottling.
  • 15% Less Material:Higher transfer efficiency than other non-electrostatic air spray; sprays at 2 bar for lower air use.
  • Quick-Release Air Cap:Hard-anodized retaining ring removes in less than a full turn; orientation lock.
  • Cam-Lock Manifold:Quick release, spaced fluid and air inlets, circulation plugs included.
  • Remote or Manual Control:Adjustable fan and atomization air with single air inlet adjustment.
  • Easy Service Back End:Housing removes easily; change fluid packing without removing the manifold.
  • Tool Kit Included:Valve tool, Torx driver, tip wrench, push-lock fittings and 5 mm key.
SpecificationValue
SeriesBinks DVX Automatic (DVXA)
Gun TypeAutomatic air spray gun
Air CapsP1, P2, P3 (HVLP, high efficiency, conventional)

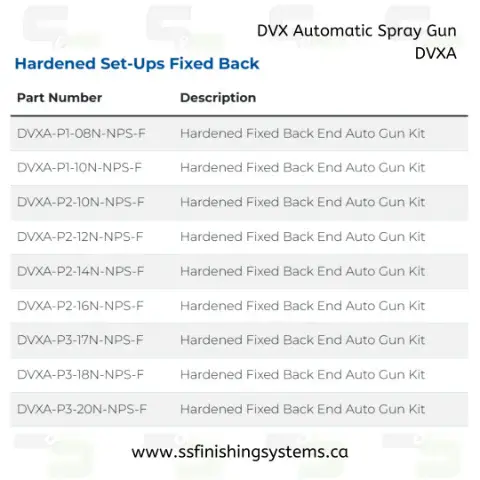

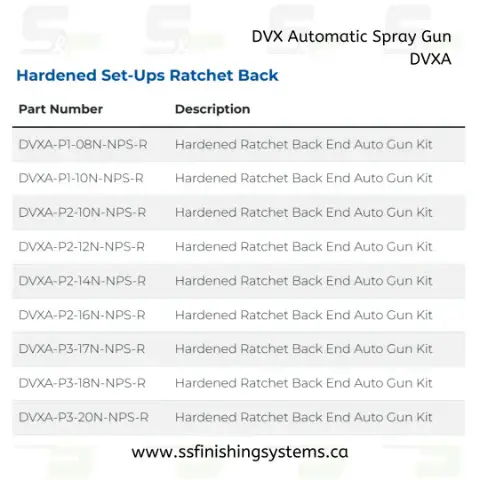

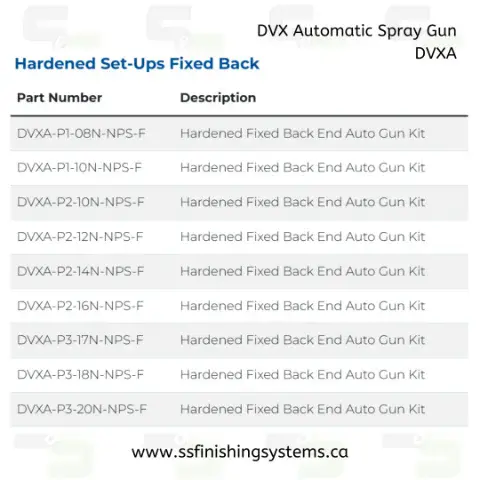

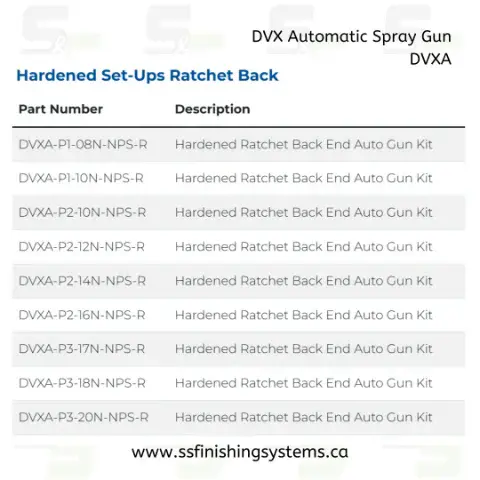

Fluid Tips8 sizes, standard or hardened (N)
Needles3 sizes, standard or hardened
Back EndFixed (F) or adjustable ratchet (R)
Manifold Connections1/4″ NPS fluid, 1/8″ NPS air
Spray PressureSprays at 2 bar; works at low and high inlet pressures
Suitable MaterialsWaterborne and solventborne coatings, high-solids urethanes, epoxies, enamels

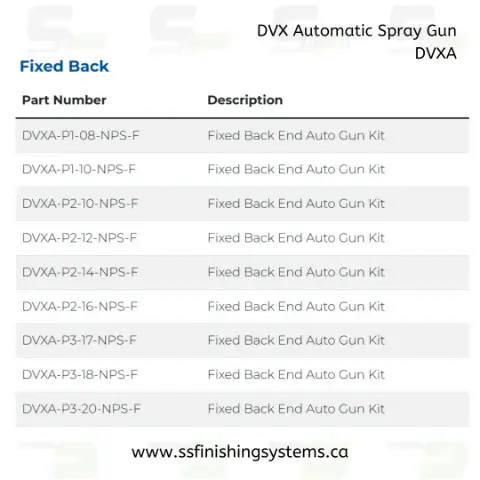

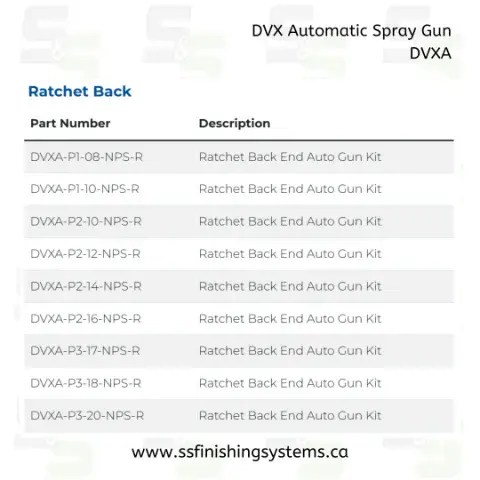

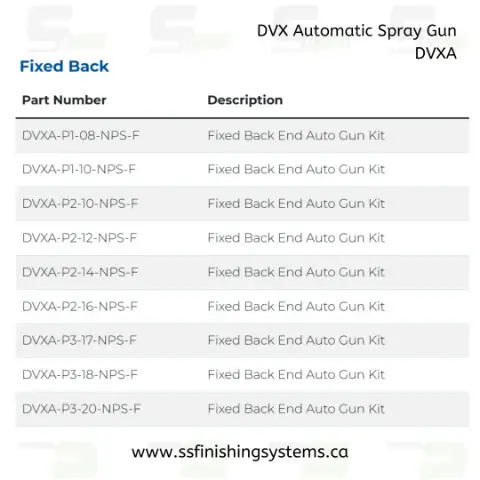

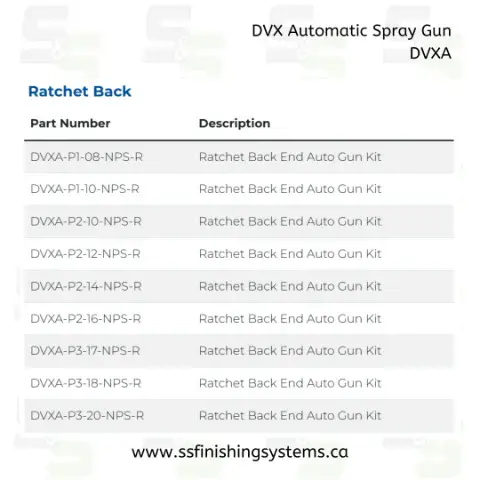

ConfigurationsDVXA-P1-08-NPS-F: DVXA (P1, 0.8MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P1-08-NPS-R: DVXA (P1, 0.8MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P1-10-NPS-F: DVXA (P1, 1.0MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P1-10-NPS-R: DVXA (P1, 1.0MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P2-10-NPS-F: DVXA (P2, 1.0MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P2-10-NPS-R: DVXA (P2, 1.0MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P2-12-NPS-F: DVXA (P2, 1.2MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P2-12-NPS-R: DVXA (P2, 1.2MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P2-14-NPS-F: DVXA (P2, 1.4MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P2-14-NPS-R: DVXA (P2, 1.4MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P2-16-NPS-F: DVXA (P2, 1.6MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P2-16-NPS-R: DVXA (P2, 1.6MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P3-17-NPS-F: DVXA (P3, 1.7MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P3-17-NPS-R: DVXA (P3, 1.7MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P3-18-NPS-F: DVXA (P3, 1.8MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P3-18-NPS-R: DVXA (P3, 1.8MM Stainless Steel, NPS MANIFOLD, RATCHET)
DVXA-P3-20-NPS-F: DVXA (P3, 2.0MM Stainless Steel, NPS MANIFOLD, FIXED)
DVXA-P3-20-NPS-R: DVXA (P3, 2.0MM Stainless Steel, NPS MANIFOLD, RATCHET)
Service ManualSB-E-3-012
DVX Automatic Gun Sell Sheet 03-446-01DVX Automatic Gun Manual SB-E-3-012DVX Gun Brochure 03-422-01DVX Automatic Gun Literature (French)DVX Gun Brochure (French)
