MS Elite Series M5+ Manual Powder Cart

Precision-built equipment for professional finishing.

Proudly Canadian

MS Elite Series M5+ Manual Powder Cart

Price range: $8,834.00 through $16,728.00

High-quality coating with an easy-to-use, multifunctional powder cart system, available with vibratory box feed or fluid hopper and single or dual applicators.

Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.
SKU: Parent-MS Elite Series M5+ Manual Powder Cart Category: Tag: Brand: ,

High-quality coating with an easy-to-use, multifunctional powder cart system.

This versatile system is designed for your manual powder coating needs. It features vibratory box feed and fluid hopper configurations with options for single or dual applicators, as well as a variety of cable and hose lengths. An automatic cleaning function and built-in cleaning air purge valve come standard. Color changes can be completed in just 30 seconds.

The ergonomic, advanced manual powder gun is one of the lightest in its class, which helps reduce operator fatigue and improve efficiency. On-gun controls allow for easy program and powder flow adjustments. The controller is IP64 FM/ATEX rated, making it suitable for operation within the booth. It includes a 7-inch bright, colorful touchscreen with intuitive controls that simplify setup and operation.

Experience outstanding powder charging, high transfer efficiency, and savings in powder usage with this system.

  • Minimal assembly required.
  • Controller is IP64 FM/ATEX rated, capable of in-booth placement and operation.
  • Balanced, ultralight powder spray gun reduces user fatigue and improves ergonomics.
  • Built-in cleaning system, achieve color changes in as little as 30 seconds.
  • Patented corona feedback system ensures high-quality coating without additional accessories.
  • 7-inch color touchscreen with intuitive controls and display, featuring multiple languages.
  • Easy storage of up to 96 programs.
  • Preloaded standard programs for first coat, recoat, metallic powder and complex-part geometry.
  • Injector rod for low-air powder feed.
  • Powder feeds directly from the original packaging.
  • Powder feed with quick, adjustable flow rates.
  • Diagnostic functions for cascade and control device.
  • ATEX/FM compliant.

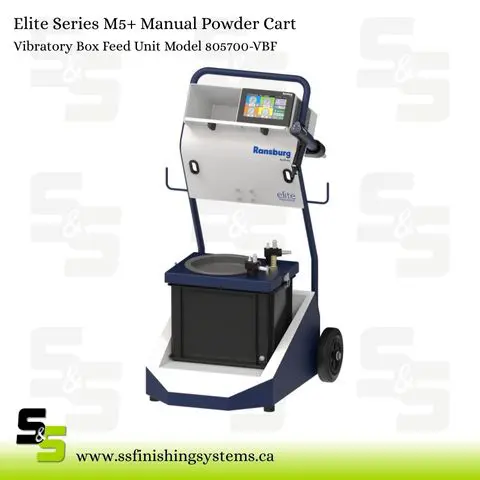

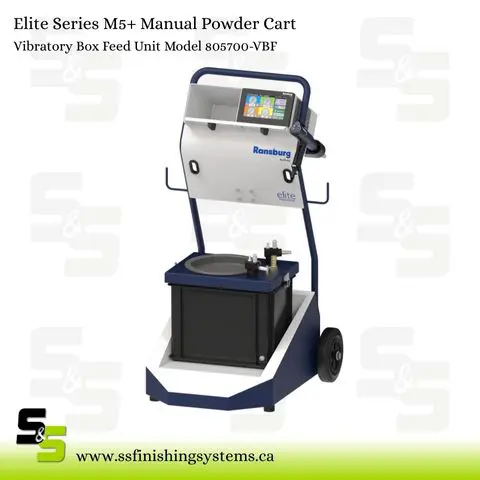

Elite Vibratory Box Feed (VBF) – Model 805700-VBF

SpecificationValue
Dimensions (W x H x L)25 x 46 x 29 in. (640mm x 1160mm x 740mm)
Weight109 lb. (49 kg)
Powder Output (Elite)250 g/min

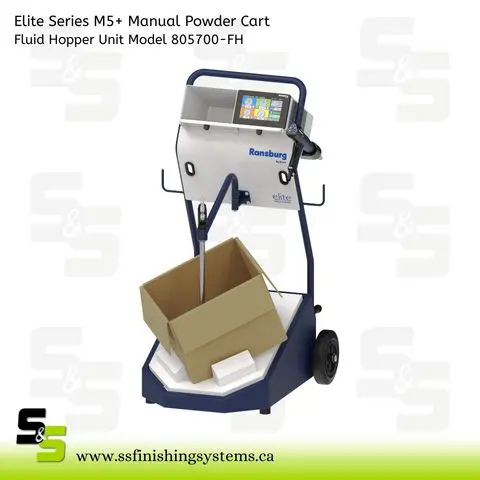

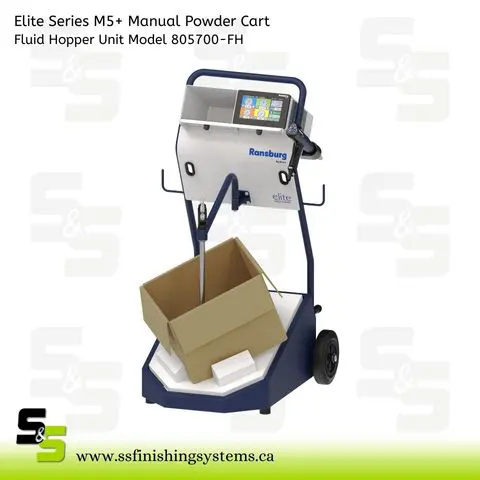

Elite Fluid Hopper (FH) – Model 805700-FH

SpecificationValue
Dimensions (W x H x L)25 x 46 x 29 in. (640mm x 1160mm x 740mm)
Weight109 lb. (49 kg)
Powder Output (Elite)400 g/min

Elite S5 Controller – Model 461959

SpecificationValue
Weight14 lb. (6.4 kg)
Power Supply(AC) 100-240 VAC/50-60 Hz
Input Air Pressure6 bar, 90 psi
Dimensions (W x H x L)7.9 x 5 x 7.9 in. (200mm x 129mm x 332mm)
Protection RatingIP 64
Charging TechnologyCorona

Elite M5 Manual Powder Gun – Model 615210

SpecificationValue
Weight16.2 oz. (458 g)
Length13.7 in. (350 mm)
Output Voltage100 kV
PolarityNegative
Protection RatingIP 64
Powder Output (maximum)450 g/min

Elite Series 5 Accessories – Nozzle Extensions:

  • Flat Spray Nozzle Extension in 150 mm/300 mm lengths
  • Round Spray Nozzle Extension in 150 mm/300 mm lengths
