The Wagner SPRINT 2 H System is a robust, high-performance manual powder coating solution. Its hopper-feed design provides a continuous, fluidized powder supply, while the PEM-X1 gun and EPG-Sprint 2 controller deliver precise, repeatable results. The Quick-Link injector and straightforward cleaning features make it especially well-suited for operations that require efficiency, consistency, and fast color changes.

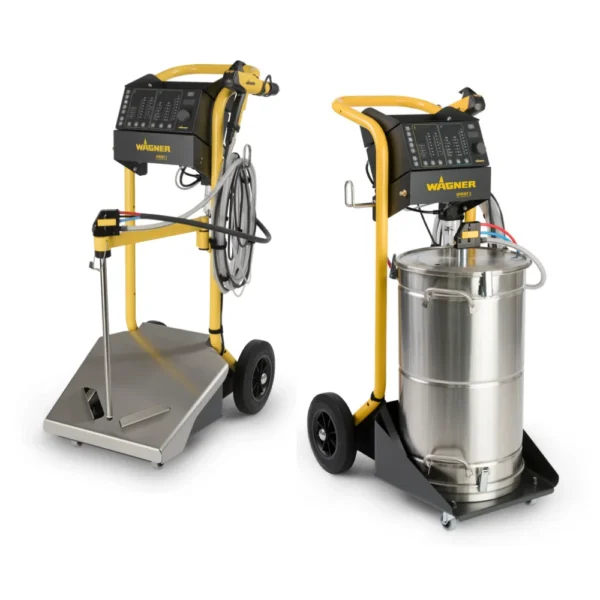

Wagner Sprint 2
Price range: $9,284.90 through $10,102.73
Fast, Precise and Efficient
Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.
- Hopper Feed Design:Provides continuous powder supply for consistent application, ideal for larger production runs.
- PEM-X1 Manual Spray Gun:Ergonomic, with stable high-voltage (up to 100 kV) for consistent coating; three selectable characteristic curves for various powder types.
- EPG-Sprint 2 Control Unit:Intuitive interface, stores up to 50 coating recipes, and includes Digital Surface Optimizer for improved finishes.
- Quick-Link Injector:Reduces air consumption, offers faster color changes with easy hose disconnection, and includes a scraper ring for efficient cleaning.
- Mobile, Robust Design:Sturdy trolley with electric vibratory base for fluidizing powder, pre-assembled components for easy setup, and space-saving design.
Sprint 2 H / B: Model Overview
| Model | Part Number (US) | Powder Feeding | Injector |
|---|---|---|---|
| Sprint 2 H: Hopper | 2466209 | 60 L powder container (hopper not included) | Quick-Link H |
| Sprint 2 B: Box feed | 2466208 | Directly from the original powder box | Quick-Link B |
Both models: trolley with WACON Sprint 2 X control unit and PEM-X1 manual gun.
System
| Application technique | Corona, manual coating |
|---|---|
| Dimensions | 720 x 493 x 1,147 mm |
| Weight | 27.3 kg |
| Air inlet pressure | 6-8 bar |
| Protection class | IP 64 |
| Max. powder output per gun | 450 g/min |
Control Unit: WACON Sprint 2 X
| Dimensions (W x D x H) | 270 x 260 x 137 mm |
|---|---|
| Weight | 3.9 kg |
| Nominal input voltage | 90-250 VAC |
| Frequency | 47-63 Hz |
| ATEX certificate | PTB 12 ATEX 5001 |
Manual Gun: PEM-X1
| Length | 335 mm |
|---|---|
| Weight | 490 g |
| ATEX certificate | PTB 12 ATEX 5002 |
| Gun part number | 2322587 |
The Sprint 2 is WAGNER’s easy-to-use manual powder coating system. WAGNER Air Flow Control (AFC) keeps the powder cloud uniform, and parameters are set with a simple rotary control.
| Industry | Typical Parts |
|---|---|
| General Industrial Coating | Machinery, equipment parts, metal enclosures |
| Automotive and Transportation | Wheels, frames and other metal components |
| Architectural and Construction | Aluminum profiles, fences, railings |
| Furniture and Appliances | Shelving, frames, handles |
Which model? Choose the Sprint 2 H when you coat from a fluidized 60 L hopper for longer runs, or the Sprint 2 B to feed powder straight from the original box for fast colour changes.
