Price range: $1,219.86 through $1,548.77

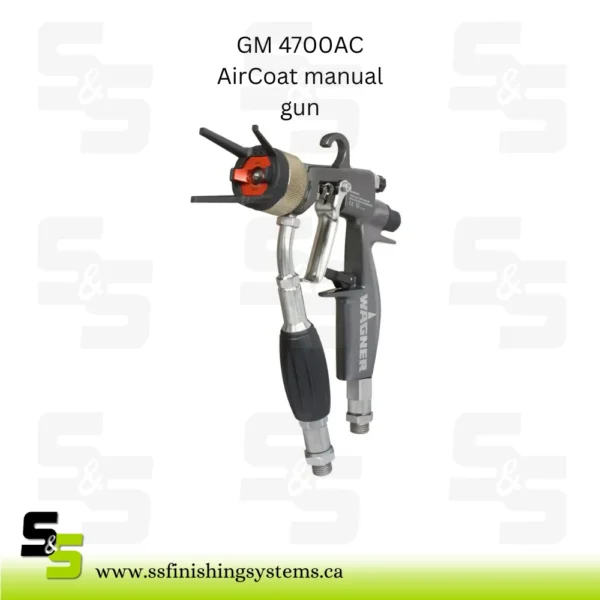

Light AirCoat manual gun with excellent ergonomics for larger hands.
Light AirCoat manual gun with excellent ergonomics for larger hands. With various nozzles and air caps for materials with low and highest viscosity. AirCoat (air-assisted airless) technology combines the speed of airless spraying with air atomization for a smooth, consistent finish.
Order information: Please always order the nozzle separately. Selectable with or without air cap.
| Specification | Value |
|---|---|
| Nozzle diameter | 0.007“ – 0.023“ |
| Material pressure | 250 bar |
| Material inlet | NPSM 1/4‘‘ – M |
| Air inlet pressure range | 0 bar – 8 bar |
| Compressed air connection | M – G 1/4‘‘ |
| Sound level | 82 dB(A) |
| Material temperature range | 80 °C |
| Length | 173 mm |
| Height | 216 mm |
| Weight | 597 g |
| Material-wetted parts | Stainless steel, Tungsten carbide, POM, PTFE, PA |
| Application technique | AirCoat (air-assisted airless) |
| Application area | Metal, plastic and wood coating |
| Operating temperature | 5 – 40 °C |

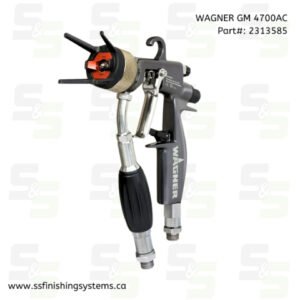

| Models | 2313585: GM 4700AC 25MPa (tip and air cap sold separately) 2313586: GM 4700AC 25MPa-LV plus 2313587: GM 4700AC 25MPa-HV plus 2315700: GM 4700AC-H 35MPa NPSM 1/4″ |
