The WACON Sprint 2 X is used for manual control of manual and automatic guns. By connecting the power supply of other WACON modules, the WACON Sprint 2 X can be used individually as well as for complete systems. High-precision air volume and high-voltage regulators enable reproducible coating results.

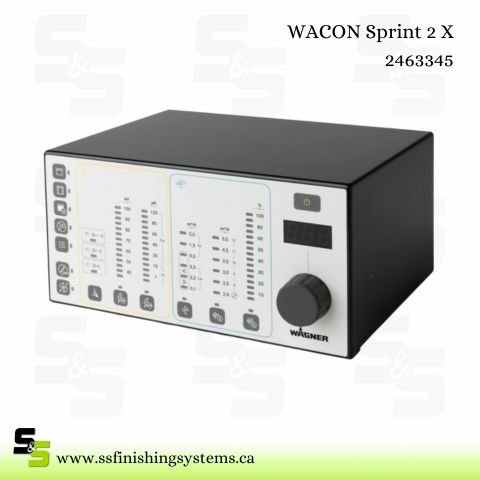

WACON Sprint 2 X
$5,957.87
Control manual and automatic guns – both individually and for complete systems.
- Improved surface quality at the touch of a button: The DSO function helps every coater to achieve finer, high-quality surfaces at the touch of a button. The function reduces overloading effects such as orange peel, edge build-up or back spray and is suitable for complex components and critical powders. The DSO function also enables good penetration in undercuts with small gun distances.
- Flexible applications:The WACON Sprint 2 X enables results to be repeated at any time. Four recipes can be accessed directly via quick selection. By selecting on the rotary knob, a further 46 recipes can be called up with one click.
- Reliable:The WAGNER Air Flow Control technology ensures exact powder control. A high-precision closed control loop permanently measures and regulates the air volume during the coating process and thus produces a uniform powder cloud for high-quality coating results.
- Easy handling:Clearly arranged control elements allow intuitive handling. All parameters are entered via a central rotary control. The intelligent control system can be adapted to a wide range of requirements by means of a multitude of setting options.
| Specification | Value |
|---|---|
| Application technique | Corona, Tribo, Manual coating, Automatic coating |
| Number of guns | 1 |
| Dimensions | 10.6 x 10.2 x 5.4 in |
| Weight | 8.6 lb |
| Protection class | IP64 (II 3(2)D IP64 80 °C) |
| ATEX certification | PTB 12 ATEX 5001 |
| Input voltage | 90–250 V AC |
| Frequency | 47–63 Hz |
| Vibration motor | No |
| Operating temperature | 41–113 °F |
