TOPQUIK SC QUICK COUPLERS INDUSTRIAL 1/4

SAFE 2-STEP DISCONNECTION

Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.

SKU Name

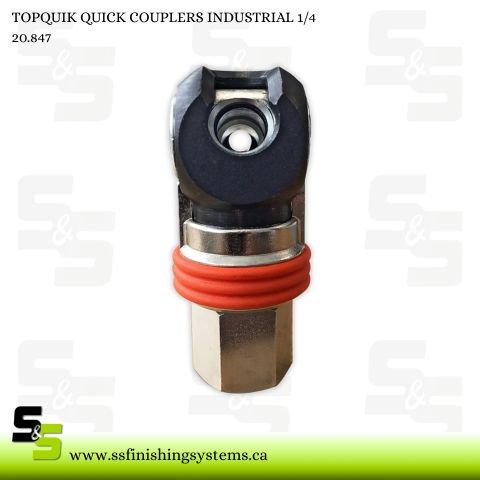

20.847: 1/4 (F) NPT

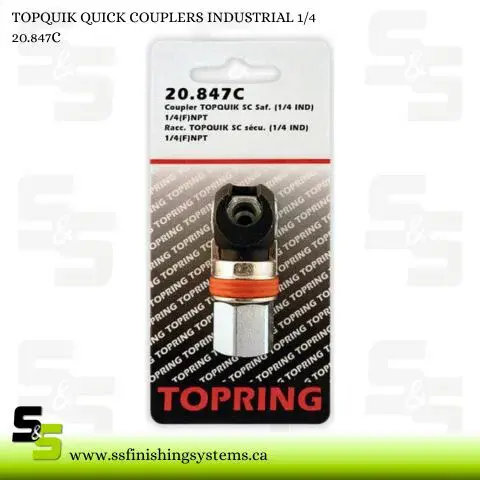

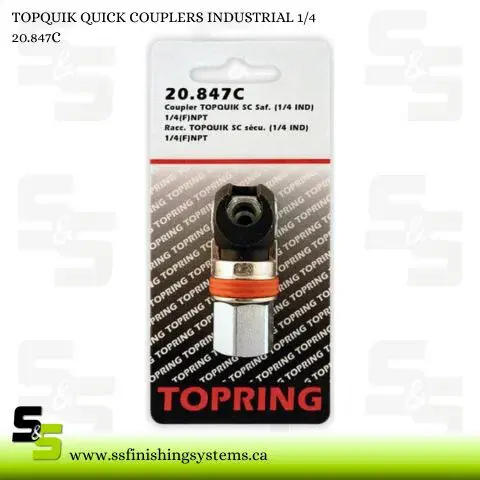

20.847C: 20.847: 1/4 (F) NPT Card
20.867: 3/8 (F) NPT
20.887: 1/2 (F) NPT
20.947: 1/4 (M) NPT
20.947C: 20.947: 1/4 (M) NPT Card
20.967: 3/8 (M) NPT
20.987: 1/2 (M) NPT
20.547: 1/4 Hose Barb
20.557: 5/16 (in) Hose Barb
20.567: 3/8 (in) Hose Barb

Clear

SKU: Parent-TOPQUIK SC QUICK COUPLERS INDUSTRIAL 1/4 Category: Hoses & Couplers Tag: Air Tools Brand: Topring

Two-step, zero pressure disconnection prevents dangerous whiplash.
Easy connection, as no reverse force is exerted by pressure.
Safe disconnection because downstream pressure is automatically released. Fitting meets ISO 4414 safety standards.
Full flow: tools operate at maximum performance without having to increase inlet pressure.
Silent disconnection limits noise pollution.
Abrasion-resistant finish.
Connect: Insert the coupler plug into the coupler and rotate approximately 90º until the orange ring engages in the groove.
Disconnecting: Push the orange ring back to reposition the spigot in a straight line to remove it.
Tip: To prevent the hose from disconnecting dangerously, the end cap should be held in place by hand until the hose is completely vented.
