Price range: $558.40 through $916.00

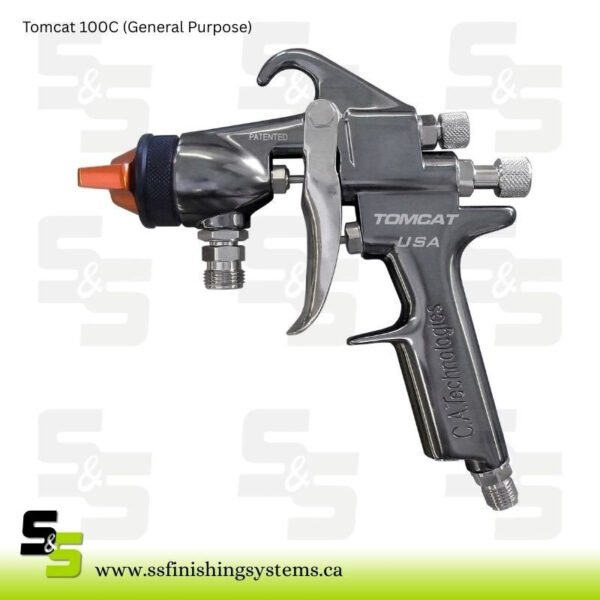

CA Technologies Tomcat 100C Conventional Spray Gun – General Purpose
CA Technologies Tomcat 100C Conventional Spray Gun – General Purpose
The T100C is an economical general purpose conventional air spray gun for spraying a wide range of coatings. Designed for production use, the Tomcat is perfect for all coatings from thin to thick, stains to glue. Can also be used with internal mix nozzles as well as carbide tipped fluid nozzles for abrasives. This gun features a self- adjusting needle packing, inexpensive nozzle replacement and rugged construction.
| Specification | Value |
|---|---|
| Air Inlet | 1/4” NPS (m) |
| Fluid Inlet | 3/8 NPS (m) |
| Weight | 19 oz. |
| CFM is dependant on Air Cap | |
| Item No. | Part No. | Description | Item No. | Part No. | Description |
| 1 | See Air Cap Chart | Air Cap | 13 | 60-104 | Air Inlet Fitting |
| 2 | See Air Cap Chart | Fluid Tip | 14 | 60-122 | Plug |
| 3 | 60-15C | Fluid Nozzle Body | 15 | 61-1003 | Air Valve Spring |
| 4 | 60-137 | Seal | 16 | 60-125 | Seal |
| 5 | 60-1106 | Tomcat Gun Body Conv. | 17 | 60-302 | Air Valve Poppet |
| 6 | See Air Cap Chart | Fan Control Assembly | 18 | 60-1520 | Air Valve Assembly |
| 7 | 60-119 | Seal | 19 | 60-132 | Fluid Inlet |
| 8 | 60-201 | Rear Bushing | 20 | 60-128 | Locknut |
| 9 | See Air Cap Chart | Fluid Needle | 21 | 61-1026 | Needle Seal |
| 10 | 60-204 | Needle Return Spring | 22 | 60-2101 | Trigger |
| 11 | 60-205 | Spring Seat | 23 | 60-1033 | Trigger Pivot Set |
| 12 | 60-202 | Fluid Control Knob |
