The Wagner Puma 28-40 PE/TG (Part No. 2329467) is a high-pressure piston pump designed for industrial applications, suitable for both Airless and AirCoat systems. Its robust stainless steel construction ensures durability and reliable performance across various coating processes.

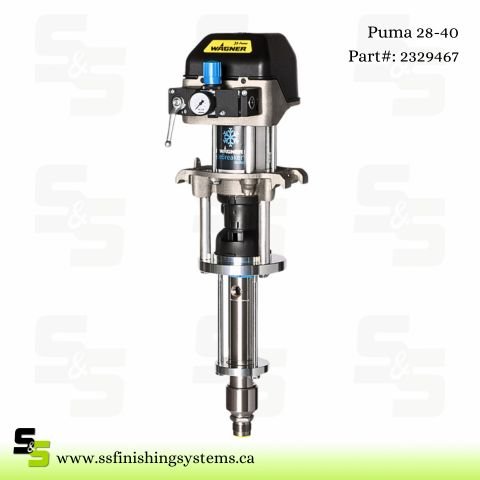

Puma 28-40
Price range: $5,247.33 through $5,955.22
High-Pressure Piston Pumps
- IceBreaker Technology:Prevents ice formation within the motor, ensuring consistent performance and reliability under various conditions.
- Durable Construction:The stainless steel design enhances longevity, making it suitable for both water- and solvent-based primers and topcoats.
- Versatile Application:Ideal for AirCoat applications, supporting multiple spray guns, which enhances productivity in industrial settings.
| Specification | Value |
|---|---|
| Pressure Ratio | 28:1 |
| Maximum Operating Pressure | 224 bar (3,263 PSI) |
| Volumetric Flow per Double Stroke | 40 cm³ |
| Maximum Flow Rate | Up to 2.4 liters per minute (0.64 GPM) |
| Air Inlet Pressure Range | 2.5-8.0 bar (36-116 PSI) |
| Sound Level at 6 bar Air Pressure | 74 dB(A) |
| Material Temperature Range | 5-80 °C (41-176 °F) |
| Ambient Temperature Range | 5-50 °C (41-122 °F) |
| Material Inlet | M 36×2 |
| Material Outlet | M 24×1.5 |
| Air Inlet Connection | G 1/2″ |
| Weight | Approximately 16 kg |
| Specification | Value |
|---|---|
| Puma 28-40 PE/TG (Part No. 2329467) | Features polyethylene (PE) piston seals and tungsten carbide (TG) seats, offering enhanced durability and compatibility with abrasive materials. |
| Puma 28-40 NPS (Part No. 2329469) | Equipped with National Pipe Straight (NPS) threads, providing compatibility with specific piping and fitting standards. |
Included Components
| Specification | Value |
|---|---|
| Pump Unit | Puma 28-40 PE/TG or NPS |
| Mounting Options | Available in wall mount or cart mount configurations, depending on operational requirements. |
| Regulator | AirCoat Regulator IceBreaker |
| Suction Hose Assembly | Suction hose DN16-SSt, complete |
| Spray Gun | GM 4700 AC with Air Cap and Tip |
| Hose Set | Twin Hose Set – 25 ft |
| Throat Seal Lubricant | 250 mL bottle |
