The Wagner Leopard 18-300 is a high-pressure piston pump designed for industrial coating applications, particularly in AirCoat systems. Its stainless steel construction ensures durability and reliable performance, making it suitable for operations requiring multiple spray guns, such as fully automated lacquer systems in the metals and plastics industries.

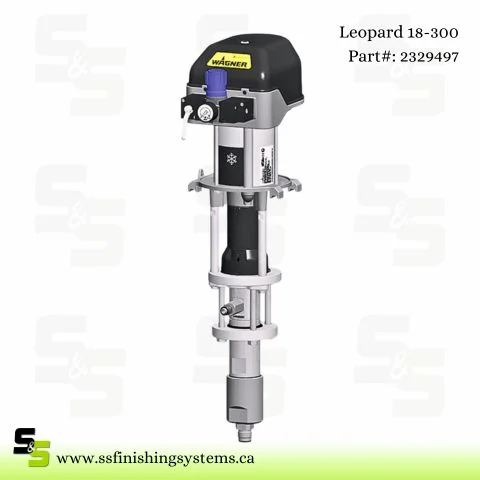

Leopard 18-300 PE/T
$10,145.11
High-Pressure Piston Pumps
Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.
| Specification | Value |
|---|---|
| Pressure Ratio | 18:1 |
| Maximum Operating Pressure | 138 bar (2,002 PSI) |
| Maximum Flow Rate | Up to 15 liters per minute (3.96 GPM) |
| Volumetric Flow per Double Stroke | 300 cm³ |
| Air Inlet Pressure Range | 2.5-7.7 bar (36-112 PSI) |
| Material Temperature Range | 5-80 °C (41-176 °F) |
| Ambient Temperature Range | 5-50 °C (41-122 °F) |
| Material Inlet Connection | M 36×2 |
| Material Outlet Connection | M 24×1.5 |
| Specification | Value |
|---|---|
| Leopard 18-300 PE/TG (Part No. 2329497) | Features polyethylene (PE) piston seals and tungsten carbide (TG) seats, offering enhanced durability and compatibility with abrasive materials. |
| Leopard 18-300 PE/T (Part No. 2329499) | Equipped with polyethylene (PE) piston seals and standard (T) seats, providing reliable sealing and extended service life. |
Included Components
| Specification | Value |
|---|---|
| Pump Unit | Leopard 18-300 PE/TG or PE/T |
| Mounting Options | Available in wall mount or cart mount configurations, depending on operational requirements. |
| Regulator | AirCoat Regulator IceBreaker |
| Suction Hose Assembly | Suction hose DN16-SSt, complete |
| Spray Gun | GM 4700 AC with Air Cap and Tip |
| Hose Set | Twin Hose Set – 25 ft |
| Throat Seal Lubricant | 250 mL bottle |
