HafcoVac Vacuum Heads

Precision-built equipment for professional finishing.

Proudly Canadian
🔍
HafcoVac Vacuum Heads

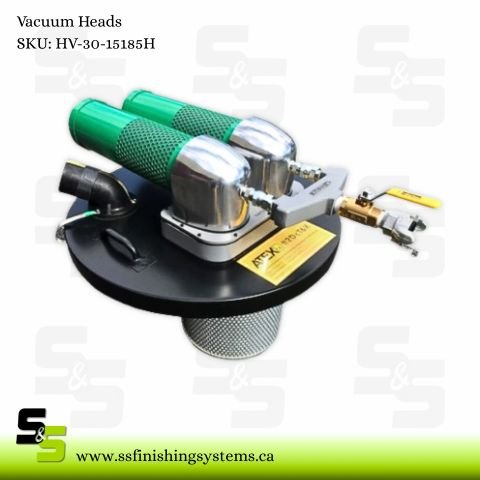

HafcoVac Vacuum Head, single venturi compressed air vacuum head
  1. HafcoVac Vacuum Heads
  2. HafcoVac Vacuum Head, single venturi compressed air vacuum head

HafcoVac Vacuum Heads

Price range: $1,570.80 through $3,763.20

HafcoVac compressed air vacuum heads for 30 or 55 gallon steel drums. Choose Head Only or Head and Tools, 48, 85 or 185 CFM, 1.5″ or 2″ hose, and standard or anti-static (X) versions.

Shipping quote: Shipping for this item will be quoted separately. We will contact you with the shipping cost after you place your order.
SKU: Parent-HafcoVac Vacuum Heads Category: Tag: Brand:

HafcoVac Vacuum Heads turn a standard steel drum into a powerful industrial vacuum that runs on compressed air. The venturi head has no electric motor and no moving parts, so there is nothing to spark, wear out or burn out. Fit it to a 30 or 55 gallon drum, connect your air line and start cleaning.

Why choose a HafcoVac Vacuum Head

  • Compressed air powered: no electricity needed, ideal where electric vacuums are a risk.
  • No moving parts: nothing to burn out, backed by a lifetime warranty.
  • Wet or dry: handles dust, debris and liquids.
  • Anti-static option: choose Anti-Static “Yes” (models ending in X) for static-sensitive and combustible dust work.
  • HEPA filtration available: add HEPA filters and bundles for fine dust.
  • Made in the USA.

Choose your configuration

  • Package: Head Only, or Head and Tools
  • Drum size: 30 Gallon or 55 Gallon
  • Air supply: 48 CFM, 85 CFM or 185 CFM
  • Vacuum hose: 1.5″ or 2″
  • Anti-static: No or Yes

Match the air supply to your compressor. A head that gets less air than it needs loses a lot of performance, so if you are unsure, choose the next size down. See the Technical Data tab for compressor sizes.

Ideal for

Upgrading or replacing the head on an existing HafcoVac, building a drum vacuum for shop clean-up, and housekeeping in woodworking, metalworking, food, powder and chemical processing.

  • Compressed air powered:Venturi design, no electric motor.
  • No moving parts:Nothing to spark, wear out or burn out.
  • Wet & dry use:Picks up dust, debris and liquids.
  • Anti-static option:X models are anti-static.
  • Fits 30 or 55 gallon drums:Use a steel drum of at least 18 gauge.
  • HEPA filtration available:Add HEPA filters for fine dust.
  • Lifetime warranty:Made in the USA.
SpecificationValue
ProductHafcoVac Vacuum Head (venturi)
Power sourceCompressed air, no electric motor
PackageHead Only or Head and Tools
Drum size30 Gallon or 55 Gallon
Air supply48 CFM, 85 CFM, 185 CFM
Operating air pressure90 PSI
Minimum compressor size48 CFM: 10 HP
85 CFM: 20 HP
185 CFM: 40 HP (50 HP+ for maximum suction)
Maximum vacuum hose length48 CFM: 25 ft
85 CFM: 50 ft
185 CFM: 100 ft
Water lift48 CFM: 144 in.
85 CFM: 180 in.
185 CFM: 264 in.
Vacuum (Hg)48 CFM: 15 in.
85 CFM: 17 in.
185 CFM: 19 in.
Vacuum hose diameter1.5″ or 2″
Anti-staticNo, or Yes (SKUs ending in X)
Drum requirementSteel drum, minimum 18 gauge, with bare metal on the top or bottom ring for grounding
Wet / dryWet and dry
Weight40 lb (as listed)
Dimensions26 x 26 x 26 in.
WarrantyLifetime (consumables excluded)
Made inUSA
What size air compressor do I need for a HafcoVac Vacuum Head?

48 CFM heads need at least a 10 HP compressor (max hose 25 ft), 85 CFM heads need at least 20 HP (max hose 50 ft), and 185 CFM dual venturi heads need at least 40 HP (max hose 100 ft). A compressor delivers about 4 CFM at 90 PSI per horsepower. If you are not sure, choose the next size down.

What does the X at the end of the SKU mean?

Models ending in X are the anti-static version (Anti-Static: Yes). For example, HV-30-1510HX is the anti-static version of HV-30-1510H.

What is the difference between Head Only and Head and Tools?

Head Only is the vacuum head by itself, for replacing or upgrading a head on your own drum. Head and Tools adds cleaning tools so you can start working right away. SKUs ending in H are Head Only and SKUs ending in T are Head and Tools.

What drum can I use with a HafcoVac Vacuum Head?

Use a 30 or 55 gallon steel drum of at least 18 gauge. It needs bare metal on the top or bottom ring so the vacuum can be grounded. Grind to bare metal if needed. We also sell matching HafcoVac drums. Shop HafcoVac drums

Can a HafcoVac Vacuum Head pick up liquids?

Yes. HafcoVac heads work wet or dry. For liquids, remove the filter and use the liquid shut-off.

Can I make my HafcoVac quieter?

Yes. The S’HUSH Silencer fits all HafcoVac vacuum heads and reduces noise to about 77 dB. Shop the S’HUSH Silencer

What warranty comes with HafcoVac Vacuum Heads?

A lifetime warranty for the original owner against defects in material and workmanship. Consumables such as filters, filter bags, foam silencers and gaskets are not covered.

Do you sell HafcoVac Vacuum Heads in Canada?

Yes. S&S Finishing Systems supplies HafcoVac vacuum heads, drums, filters and parts across Canada. Contact us for help choosing the right head for your compressor.

HafcoVac Operating Instructions & Safety Manual (2026).pdfPDFHafcoVac Venturi Vacuum Head Parts Diagram.pdfPDFHafcoVac Product Brochure (2026).pdfPDF
