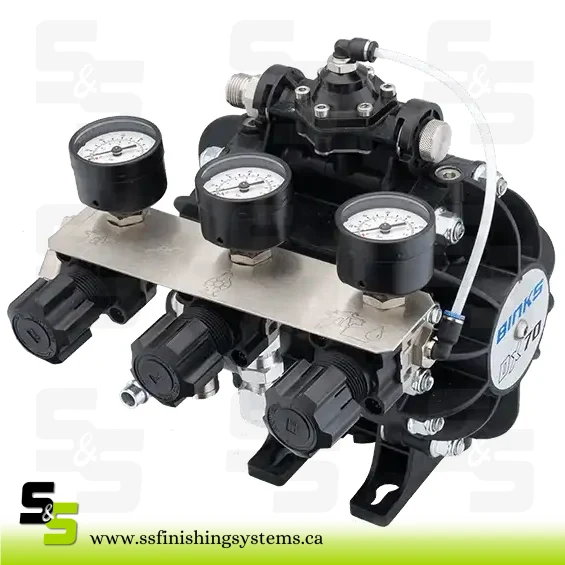

The Binks DX70 Diaphragm Pump is an air-powered, 1:1 ratio double diaphragm pump for supplying paints and materials directly to spray guns, ideal for one or two gun applications with fast colour changes and quick refills.
Its no-crease diaphragm shape gives a longer working life, and the built-in fluid regulator delivers nearly pulse-free flow without a separate regulator or surge chamber. The acetal pump body with stainless steel balls and soft seats is compatible with a wide range of coatings, including ceramic glazes. A non-stall air valve gives smooth, quiet, surge-free delivery up to 1000 cc/min, and labelled air regulators control pump and gun air independently.
Available packages: DX70R3-CF and DX70R3-CFG (cart mount), DX70R3-PF and DX70R3-PFA (pail mount), DX70R3-TF and DX70R3-TFG (tripod mount) and DX70R3-WF (wall mount).
