PRODUCTS > Wagner Sprint 2 H Manual Powder Coating System
2466209 thumbnail

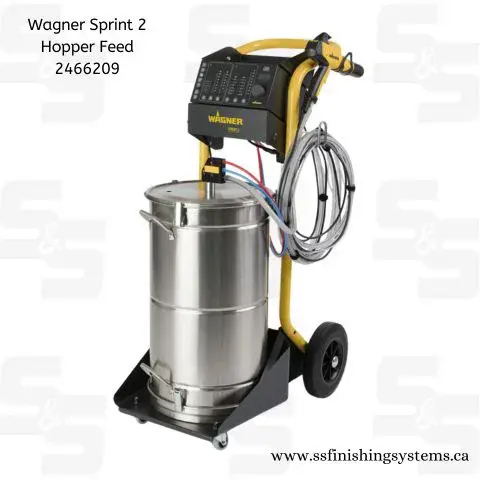

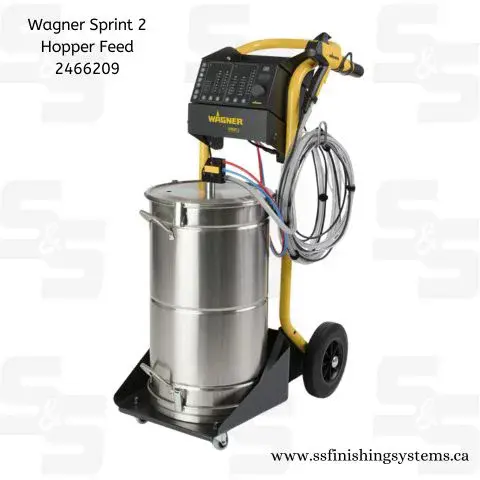

Wagner Sprint 2 H Manual Powder Coating System

Fast, Precise and Efficient

Overview

The Wagner SPRINT 2 H System is a robust, high-performance manual powder coating solution. Its hopper-feed design provides a continuous, fluidized powder supply, while the PEM-X1 gun and EPG-Sprint 2 controller deliver precise, repeatable results. The Quick-Link injector and straightforward cleaning features make it especially well-suited for operations that require efficiency, consistency, and fast color changes.





Key Feature



  • Hopper Feed Design: Provides continuous powder supply for consistent application, ideal for larger production runs.
  • PEM-X1 Manual Spray Gun: Ergonomic, with stable high-voltage (up to 100 kV) for consistent coating; three selectable characteristic curves for various powder types.
  • EPG-Sprint 2 Control Unit: Intuitive interface, stores up to 50 coating recipes, and includes Digital Surface Optimizer for improved finishes.
  • Quick-Link Injector: Reduces air consumption, offers faster color changes with easy hose disconnection, and includes a scraper ring for efficient cleaning.
  • Mobile, Robust Design: Sturdy trolley with electric vibratory base for fluidizing powder, pre-assembled components for easy setup, and space-saving design.

Technical data



  • Application technique: Corona, Tribo, Manual coating
  • Dimensions: 720 x 493 x 1,147 mm
  • Weight: 27.3 kg
  • Air inlet pressure: 6-8 bar
  • Protection class: IP 64
  • Max. powder output per gun: 450 g/min

Applications



  • General Industrial Coating: Machinery, equipment parts, metal enclosures, etc.
  • Automotive and Transportation: Wheels, frames, and other metal components.
  • Architectural and Construction: Aluminum profiles, fences, railings.
  • Furniture and Appliances: Shelving, frames, handles, and more.

Order Here
Sprint2_Sprint2-Expert_EN_97598.pdf
