PRODUCTS > Wagner PEA-X1 Corona Automatic Guns
2430803 thumbnail

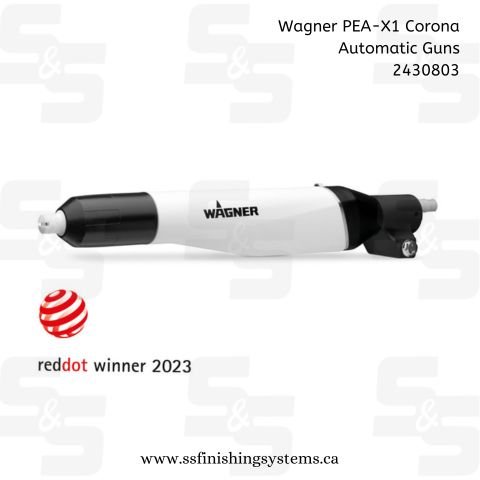

Wagner PEA-X1 Corona Automatic Guns

Excellent Performance - Excellent Design

Overview

The Wagner PEA-X1 Corona Automatic Guns represent the latest generation of automatic powder coating equipment, designed to deliver superior coating results with high application efficiency. These guns are suitable for various industrial applications, including metal and wood coatings.



Key Features:

  • Excellent Coating Performance: Equipped with a robust high-voltage cascade, the PEA-X1 ensures efficient powder application, resulting in high-quality finishes.
  • Uniform and Thin Coating Layers: The optimized nozzle system allows for the application of consistent and thin coating layers, reducing powder consumption and enhancing surface quality.
  • Modular Design for Versatility: The PEA-X1's modular construction, along with a wide range of accessories, enables customization for diverse coating tasks. Notably, its components are compatible across the X1 gun family, including the PEM-X1 and PER-X1 models.
Technical Specifications:

  • Application area: Metal coating, Wood coating, Wheel coating
  • Application technique: Corona, Automatic coating
  • Processable materials: Organic powder coatings
  • Dimensions: 440 x 48 x 66 mm
  • Weight: 545 g
  • Protection class: IP 54
  • Polarity: negative or positive
  • Max. powder output per gun: 450 g/min
Configuration

  1. Basic (F) (with flat spray nozzle F1) 2430803
  2. Basic (R) (with deflector cone D18, D25 & D34) 2430804
  3. Basic (+) (with pos. cascade & flat spray nozzle F1) 2430805

Order Here
