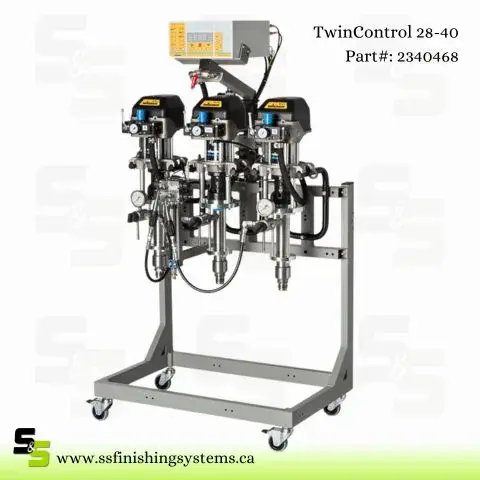

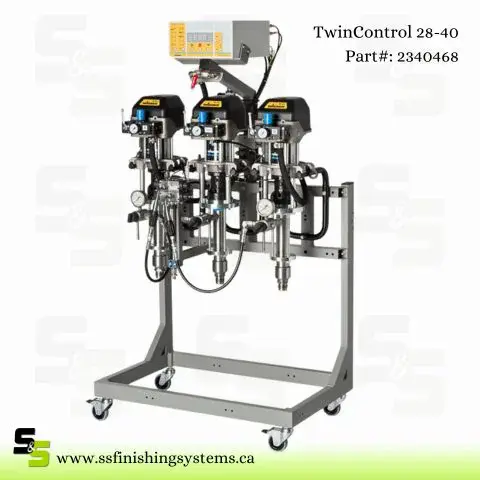

TwinControl 28-40

Electronic mixing and dosing system

Overview

The Wagner TwinControl 28-40 is an electronic 2K mixing and dosing system designed for precise application of two-component materials. This model is identified by the part number 2340468.



Key Specifications:

  • Mixing Ratio: Adjustable from 0.1:1 to 20:1, accommodating various material requirements.
  • Maximum Working Pressure: 3248 psi (224 bar), suitable for high-pressure applications.
  • Flow Rates:

At a 1:1 mix ratio: 0.6 gallons per minute (gpm)
At a 4:1 mix ratio: 0.4 gpm
At a 10:1 mix ratio: 0.3 gpm
At a 20:1 mix ratio: 0.2 gpm

  • Mixing Accuracy: ±2%, ensuring consistent and reliable mixing performance.
Features:

  • Magnetic Stroke Meter: Developed by Wagner for high-precision flow metering, this external device ensures no contact with the fluid, reducing wear and maintenance needs. It also detects pump malfunctions such as leakages or irregular strokes.
  • User-Friendly Control Panel: The intuitive interface allows for easy adjustment of parameters like mixing ratio and flushing procedures. Daily operations are simplified with just three main buttons: Start, Stop, and Flushing.
  • Automatic Flushing Process: A single button initiates the cleaning process, enhancing efficiency and reducing manual intervention.
The TwinControl 28-40 is ideal for applications involving abrasive materials, reactive paints, high-viscosity substances, and high delivery rates. Its design ensures precise mixing quality, making it suitable for industries such as wood, plastic, and metal.
