PRODUCTS > TwinControl 10-70
TwinControl10-70 thumbnail

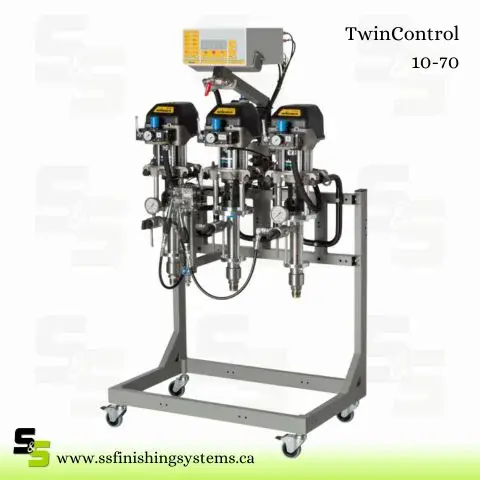

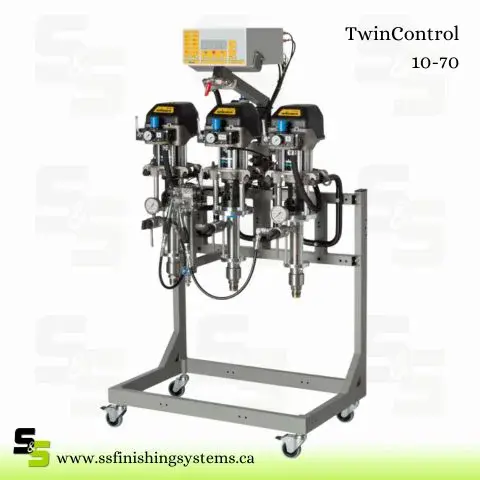

TwinControl 10-70

Ideal for processing 2K material when only a few color changes are required.

Overview

Electronic 2K mixing system for airspray applications. Different variants can be configured for different applications. Second color can be retrofitted with extension set.



Key Feature

  • Easy handling: All working parameters can be operated quickly, easily and language-neutral with three buttons: Start, stop and flush are sufficient for the complete operation.
  • Reliable: The patented magnetic stroke sensor ensures very high accuracy and reliability even with highly viscous materials or sensitive top coats.
  • Easy cleaning: The fully automatic flushing process enables simple, fast and reliable flushing at the touch of a button. When restarted, the system shows exactly when it is ready for coating again.
  • High precision and mixing accuracy: The specially designed mixing block with integrated dosing valves ensures precise dosing and excellent homogenization of the components.
  • Flexible applications: In addition to various frame or trolley variants, heaters, gun flushing devices or external mixers can be selected from the extensive range of accessories.
Technical data

  • Application area: Metal coating, Plastic coating, Wood coating
  • Application technique: Airspray
  • Processable materials: Solvent-based paints (2K), Water-based paints (2K), High solid paints (2K)
  • Material wetted parts: Stainless steel, Hard chrome, Tungsten carbide, Packing PE-T / PE-TG
  • Material outlet: M G 3/8''
  • Compressed air connection: F G 1/2''
  • Air inlet pressure: 5-8 bar
  • Max. material pressure: 40 bar
  • Input frequency: 50-60 Hz
  • Input voltage: 115-230 V
  • Material pH value: 9-3.5 pH
  • Material temperature: 5-60 °C
  • Mixing accuracy: 2 %
  • Mixing ratio: 0.1-20 :1
Available in different configurations:

  • Isocyanate Catalyst Version: Part number 2339020.
  • Acid Catalyst Version: Part number 2427701.
