Tru-Cure IR3LT

Customize This Product

Overview

The Tru-Cure line of products are designed to provide an even cure of most automotive refinishing materials. The portable, low-cost system requires no installation allowing quick star-up.

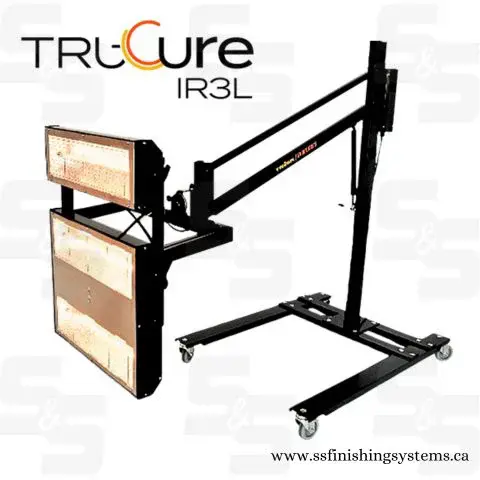

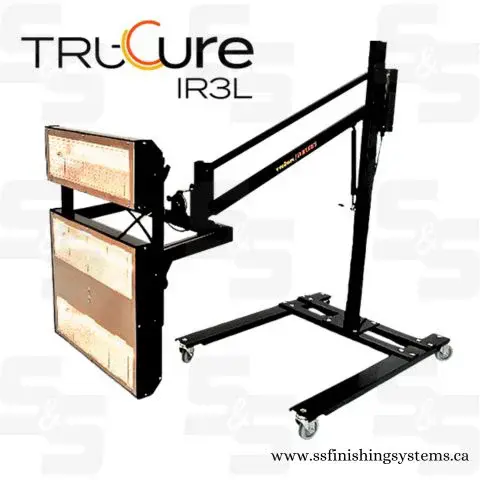

Our stand-up infrared unit features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature overentire surfaces This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating.

Additionally, the Trisk | DeVilbiss Tru-Cure IR lamp units feature an adjustment to allow it to be set for curing both horizontal and vertical without putting additional stress on the lamp itself if constantly changed by the operator.



Key Feature

  • Even Heat Distribution: Both models feature a unique dimpled sheet reflector that ensures uniform curing intensity and temperature across surfaces, minimizing the risk of over-curing or burning.
  • Adjustable Orientation: The infrared lamp units can be easily adjusted for both horizontal and vertical curing positions without stressing the lamp, accommodating different parts of a vehicle.
  • Long-Life IR Lamps: Equipped with durable infrared lamps designed for extended use, reducing the need for frequent replacements.

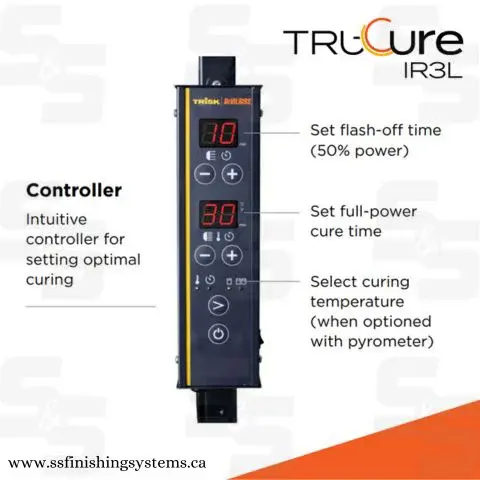

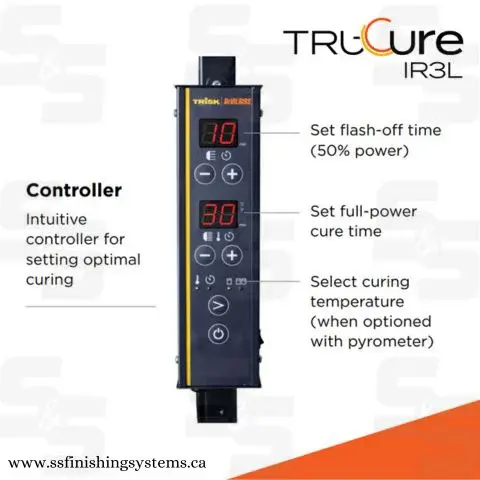

  • Customizable Curing Cycles: Users can set specific timings for both flash-off (50% power) and full curing (100% power) periods, allowing for tailored curing processes based on the material and application.
  • Laser-Guided Pyrometer: The IR3LT model includes a laser-guided pyrometer that displays surface temperature readings, aiding in precise positioning and optimal curing.
  • Versatile Stand Design: The stand's height and adjustable gas piston arm make it suitable for curing elevated surfaces like hoods and roofs, enhancing its versatility in various automotive applications.
Technical Specifications

  • Power Output: 3,000 Watts of curing power, suitable for a wide range of automotive refinishing tasks.
  • Electrical Requirements: Both units operate on a 220-240V, 50/60Hz single-phase power supply.
  • Weight: The units weigh approximately 48 kg, making them portable yet stable for various workshop environments.
