Overview

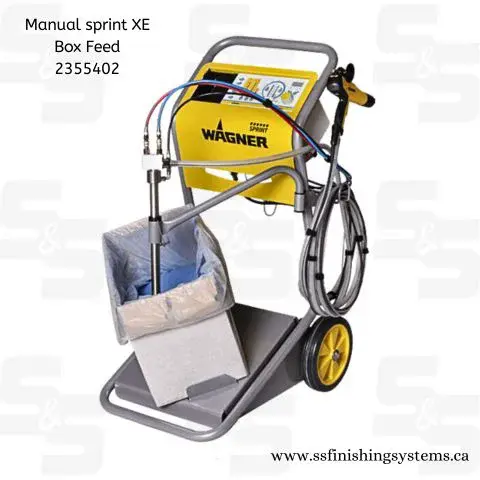

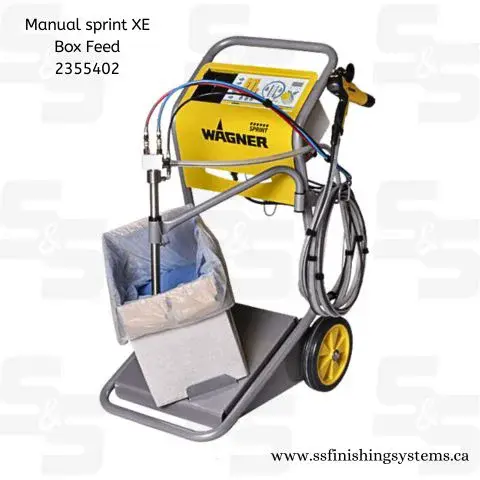

The Wagner Sprint Airfluid XE Manual Powder Coating System is designed for efficient and high-quality powder coating, particularly suitable for small batches and frequent color changes. It offers flexibility in operation by allowing powder feeding directly from the original container, reducing cleaning time and minimizing powder waste.
Key Features
Vibratory Box Feed System: Feeds powder directly from the original container, ideal for frequent color changes.
EPG-Sprint XE Control Unit: User-friendly interface with up to 50 programmable coating recipes.
PEM-X1 Manual Spray Gun: Ergonomic design with high-performance cascade for consistent coating.
Closed Loop Air Flow Control: Maintains precise air pressure and volume for optimal coating results.
Ideal For: Small batch production and rapid color transitions.
Technical Specifications
Input Voltage: 85–250 V
Input Power: 40 W
Input Frequency: 50–60 Hz
Protection Class: IP 64
Air Inlet Pressure: 0.6–0.8 MPa (6.0–8.0 bar or 87–116 PSI)
Air Inlet Connection: G 1/4"
Exhaust Air Flow: 0.05–20.0 Nm³/h
Operating Temperature: 5–45 °C (41.0–113.0 °F)
Weight: 38.0 kg (83.8 lbs)
