Overview

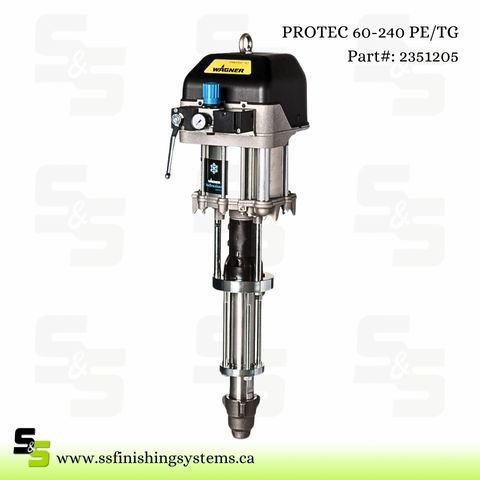

The Wagner PROTEC 60-240 PE/TG (Part No. 2351205) is a high-pressure piston pump designed for demanding industrial coating applications. Its robust construction and advanced features make it particularly suitable for heavy-duty corrosion protection tasks.
Key Specifications- Pressure Ratio: 18:1
- Maximum Operating Pressure: Up to 480 bar (6,960 PSI)
- Maximum Flow Rate: Up to 7.2 liters per minute (1.90 GPM)
- Volumetric Flow per Double Stroke: 240 cm³
- Air Inlet Pressure Range: 2.5–8 bar (36–116 PSI)
- Material Outlet Connection: M24x1.5
- Weight: 58 kg (128 lbs)
- Sound Level at 6 bar Air Pressure: Approximately 81 dB(A)
Construction and Design Features- Material Wetted Parts: Constructed from stainless steel, hard chrome, tungsten carbide, PTFE, and PE, ensuring durability and resistance to corrosion.
- Inlet Valve: Equipped with an extra-large valve ball (up to 45 mm in diameter) for reliable suction performance, even with highly viscous materials.
- Air Motor Design: Designed to prevent performance losses due to icing, ensuring consistent operation.
Included Components- Pump Unit: PROTEC 60-240 PE/TG
- Mounting Options: Available in wall mount or cart mount configurations, depending on operational requirements.
- Regulator: AirCoat Regulator IceBreaker
- Suction Hose Assembly: Suction hose DN16-SSt, complete
- Spray Gun: GM 4700 AC with Air Cap and Tip
- Hose Set: Twin Hose Set - 25 ft
- Throat Seal Lubricant: 250 mL bottle
