Overview

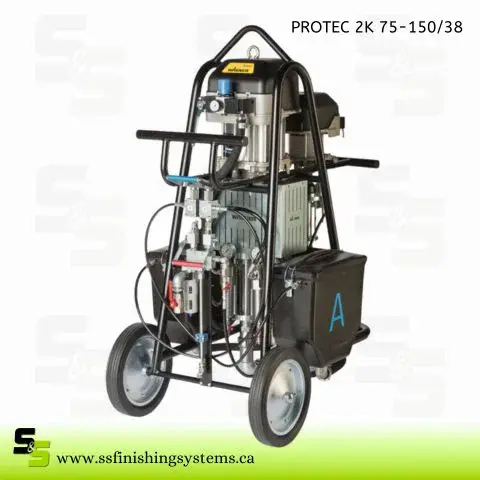

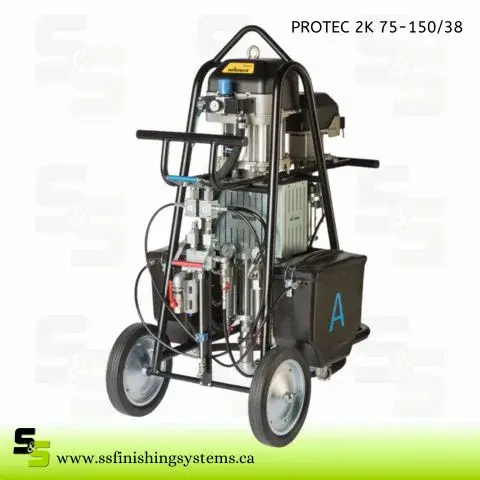

Mechanical 2K system for processing heavy corrosion protection paints and primers. Mixing ratio of 4:1, up to 500 bar and 5.7 l/min. With flushing pump and heater sets as options.
Key Feature- Strong Performance: High performance even with highly viscous material and high flow rate for large coating thicknesses.
- Easy handling: learly arranged and easy to use, like a normal 1K piston pump.
- Reliable supply: Two large containers and the large inlet valves ensure a constant and safe material supply.
- Excellent coating results: Exactly the amount of paint needed is mixed. Only those parts of the device (mixer, material hose, gun) that contain mixed material are flushed.
- High safety: The pressure display is safely within view. An automatic pressure relief ensures maximum safety.
Technical data- Application area: Metal coating, Protective coating
- Application technique: Airless
- Processable materials: Water-borne, Solvent-borne, Abrasive
- Material wetted parts: Stainless steel, Tungsten carbide, PE, PTFE, Zinc-plated steel
- Material outlet: M G 3/8''
- Air inlet pressure: 1.5-6.5 bar
- Max. material pressure: 500 bar
- Volumetric flow per double stroke: 188 cm³
- Max. stroke rate: 30 1/min
- Sound level at 6 bar air pressure: 80 dB(A)
- Material pH value: 9-3.5 pH
- Material temperature: 5-80 °C
- Fixed mixing ratio: 4 :1
