Overview

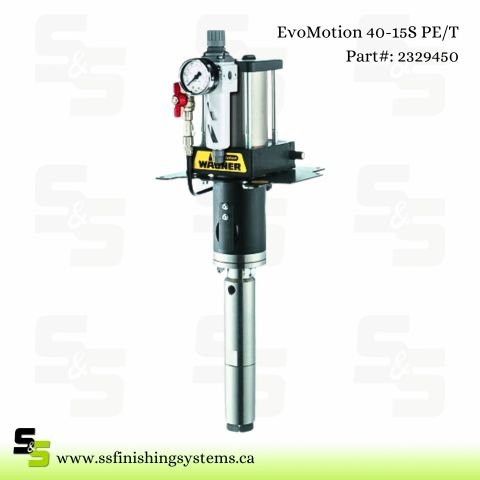

The Wagner EvoMotion 40-15S is a high-pressure piston pump crafted from stainless steel, tailored for both Airless and AirCoat applications. It's particularly suitable for professional single-item lacquer stations in production settings and workshops.
Key Specifications- Pressure Ratio: 40:1
- Maximum Operating Pressure: 320 bar (4,641 PSI)
- Volumetric Flow per Double Stroke: 15 cm³ (0.92 in³)
- Maximum Flow Rate: 0.9 liters per minute (at 60 double strokes per minute)
- Material Inlet: M–M 36x2
- Material Outlet: M–1/4'' NPS
- Air Inlet Connection: 8 mm
- Air Inlet Pressure: 2.5–8.0 bar (36–116 PSI)
- Sound Level at 6 bar Air Pressure: 74 dB(A)
- Material Temperature Range: 5–80 °C (41–176 °F)
- Ambient Temperature Range: 5–60 °C (41–140 °F)
- Material pH Range: 3.5–9
- Maximum Material Pressure at Pump Inlet: 20 bar (290 PSI)
- Allowable Inclination: ±10°
- Weight: 9.0 kg (19.8 lbs)
These specifications ensure precise and efficient application of coatings, making the EvoMotion 40-15S ideal for tasks requiring high reliability and performance.
Features- Durable Construction: The pump's stainless steel design and self-adjusting packings, combined with a thick hard chrome-plated fluid section, ensure longevity and consistent performance across various materials.
- Efficient Operation: The packing-free, anti-stalling pilot valve maintains full air pressure regardless of the adjusted working pressure, guaranteeing high-speed inversions and optimal performance.
- User-Friendly Design: An operational panel allows for easy adjustment of main operating parameters, enhancing user experience and efficiency.
Available Configurations:- The EvoMotion 40-15S is available in various configurations to suit different application needs:
- Standard Pump: Includes the pump with an air regulator and hose connection fitting, designed for installation on wall mounts, frames, or trolleys.
- Spray Pack Configurations: These ready-to-use packages include additional components such as stands, hoppers, return pipes, spray guns (e.g., Wagner GM4700), and hose sets. For instance, the EvoMotion 40-15S System Spray Pack includes a 5-liter hopper, GM4700 gun with a 413 tip, and a 25-foot twin hose set.
ApplicationsThis pump is ideal for:
- Professional Lacquer Stations: Suitable for single-item lacquer stations in production environments and workshops.
- Airless and AirCoat Applications: Designed to handle both application methods efficiently, providing versatility in various coating processes.
