Overview
The Carry-Air™ Filtration Panels convert shop air into clean, breathable air for up to 8 airline respirators. Featuring a 3-stage filtration system, they remove water, oil, and particulates while an optional CO monitor ensures safety.
Key Feature
- Function: Converts shop air used for pneumatic tools into clean, breathable air.
- Capacity: Supports 1 to 8 airline respirators, delivering 15, 30, 60, or 100 CFM of breathable air at 5-125 psig.
- 3-Stage Filtration System: Removes water, oil, and particulate contaminants from compressed air.
- Carbon Monoxide (CO) Monitor (Optional):
- Operates on AC or DC power.
- Activates an audible alarm if CO levels exceed 10 ppm (5 ppm in Canada).
- Pressure Regulation & Safety Features:
- Includes a pressure gauge, adjustment knob, and locking ring.
- Pressure relief valve protects the CO monitor and respirators from regulator failure.
- Portable & Durable Design:
- Housed in a rugged Pelican case for portability and protection.
- Comes with a support stand for stability and upright operation.
- Additional Options:
- Available as an AC/DC-powered wall-mount unit.
- Offered with or without a CO monitor.
- Compliance: Meets NIOSH requirements for point-of-attachment.
- Single Outlet & Inlet: 100 CFM Panel is ideal for filtering air anywhere within airline systems.
Part Number Description

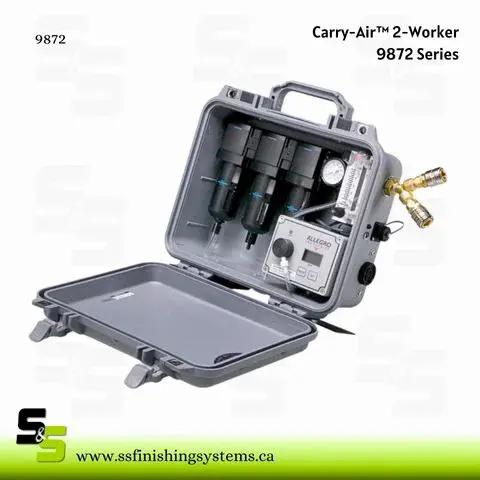

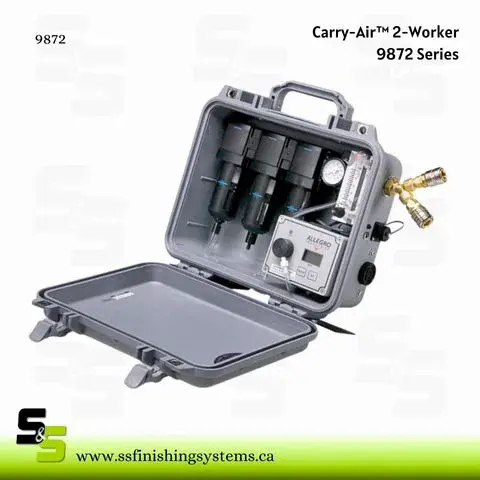

- 9872 - Carry-Air™ Filtration Panel w/ CO Monitor (2-Worker)
- 9872-W/O – Carry-Air™ Filtration Panel w/o CO Monitor (2-Worker)

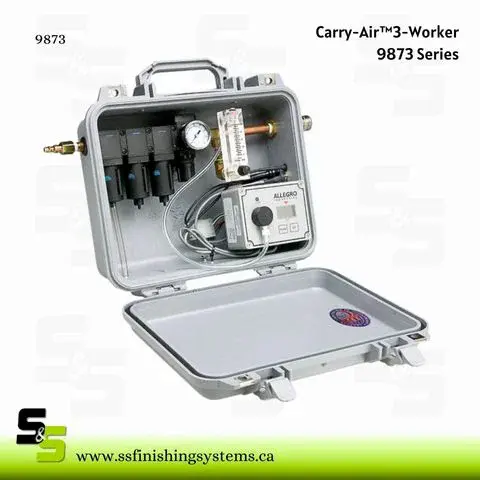

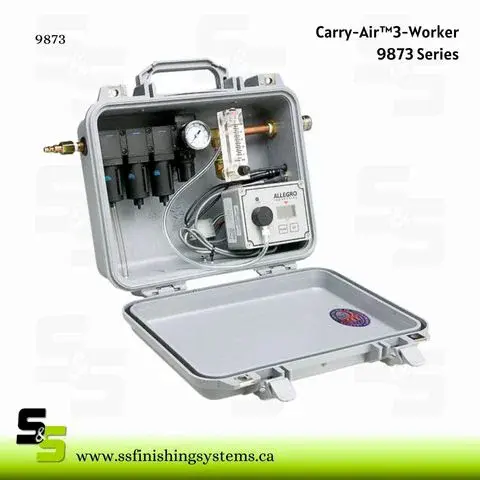

- 9873 - Carry-Air™ Filtration Panel w/CO Monitor (1-Worker)

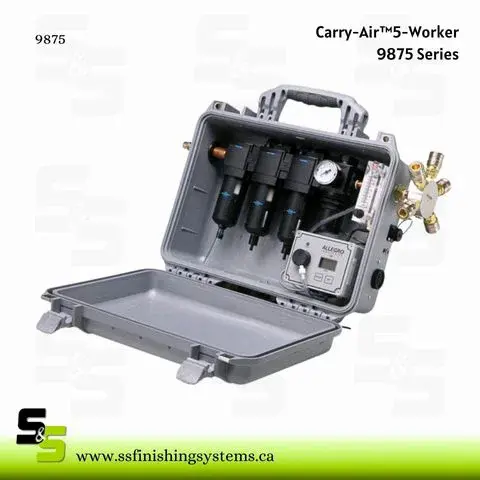

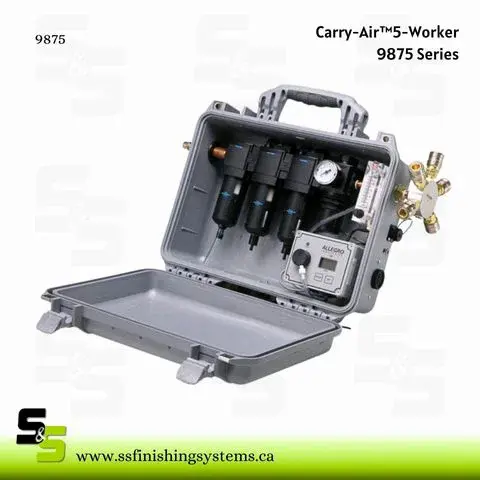

- 9875 - Carry-Air™ Filtration Panel w/CO Monitor (5-Worker)

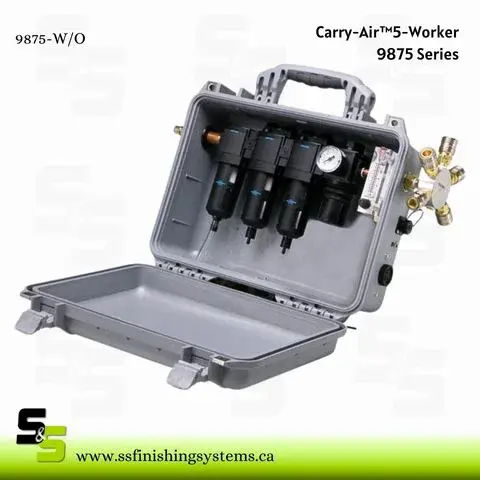

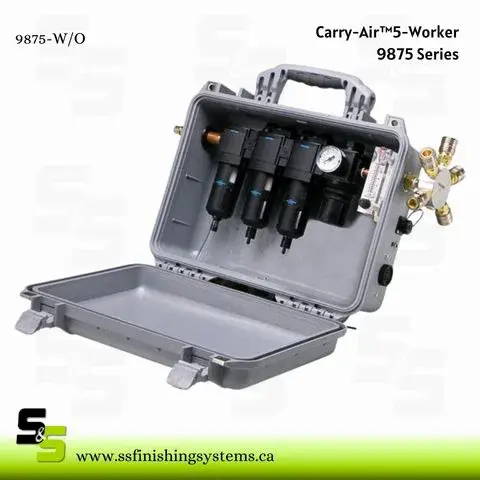

- 9875-W/O : Carry-Air™ Filtration Panel w/o CO Monitor (5-Worker)

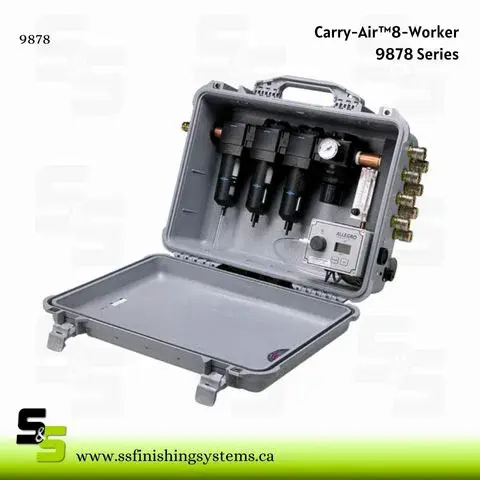

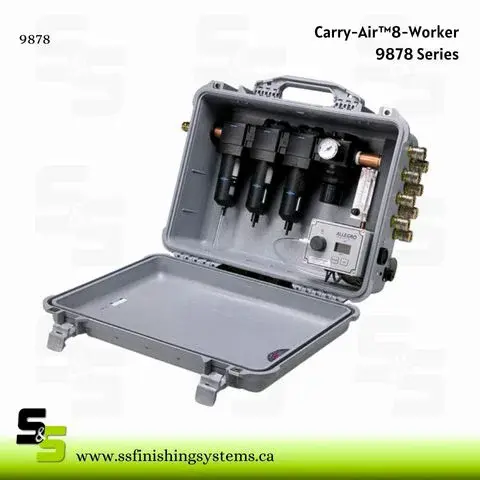

- 9878 : Carry-Air™ Filtration Panel w/CO Monitor (8+ Worker)

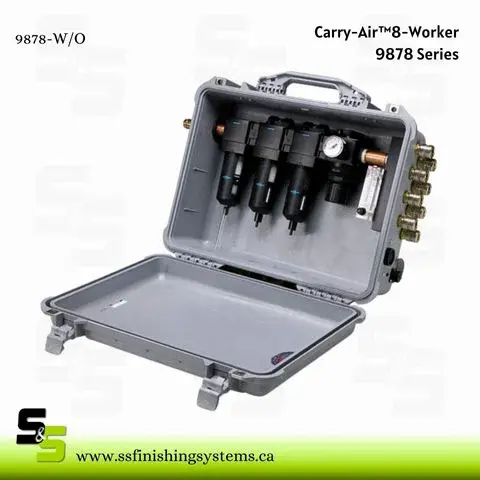

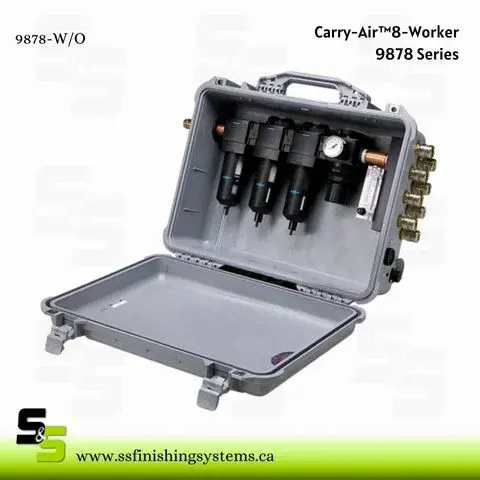

- 9878-W/O : Carry-Air™ Filtration Panel w/o CO Monitor (8+ Worker)
