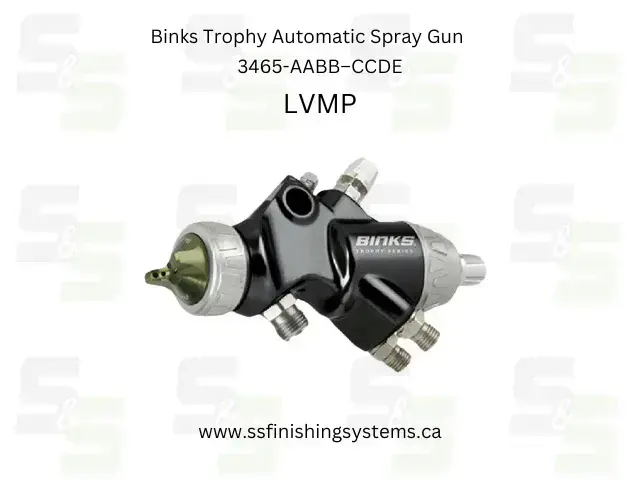

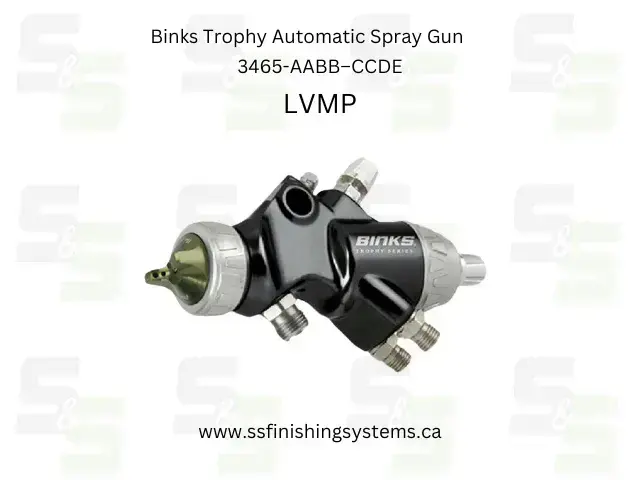

3465-LVMP thumbnail
3465-Part thumbnail

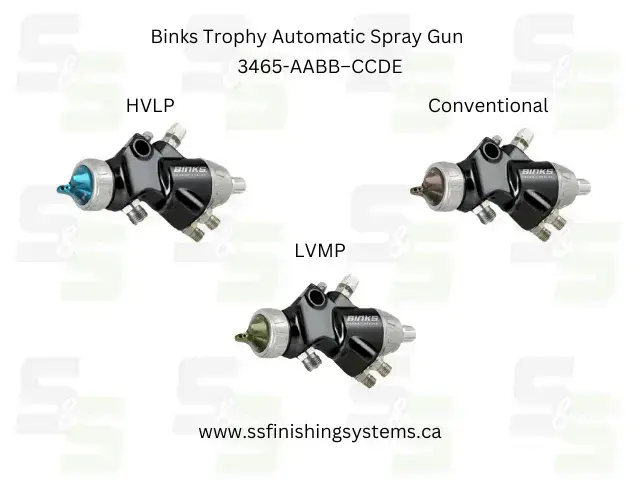

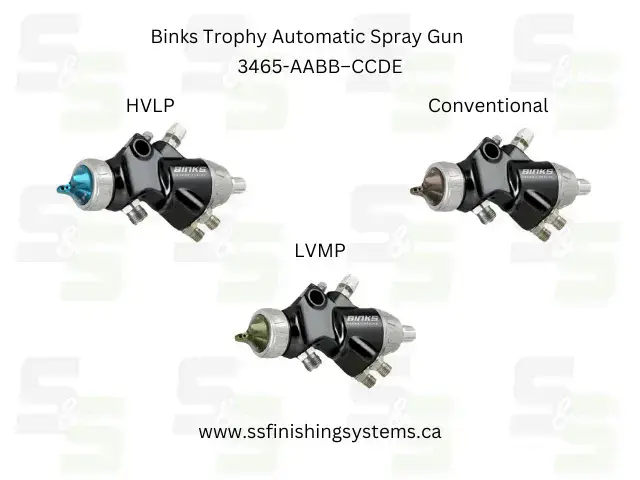

3465 thumbnail

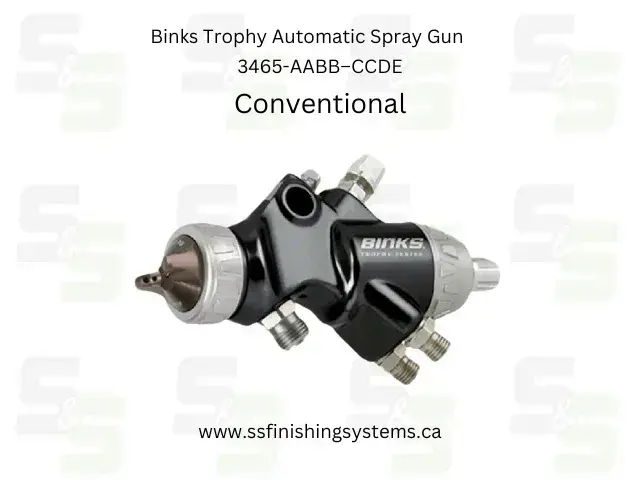

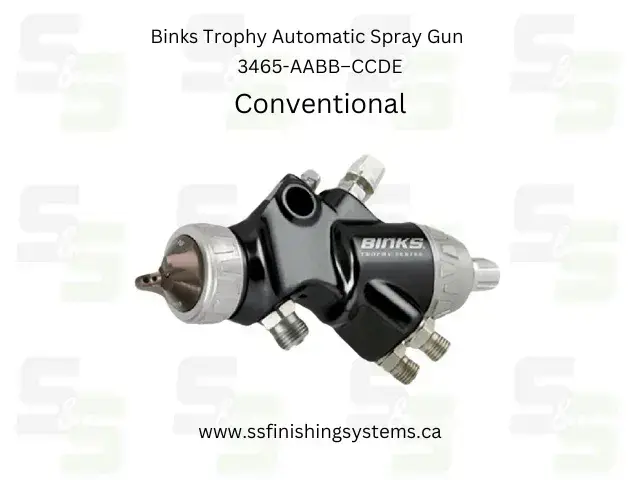

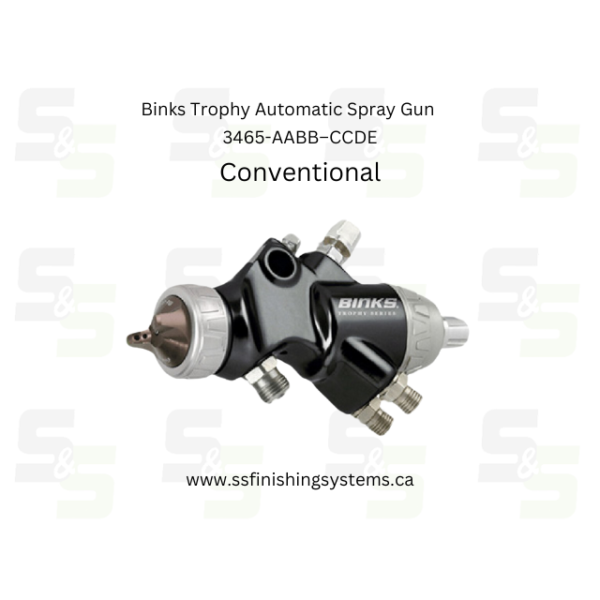

3465-COV thumbnail

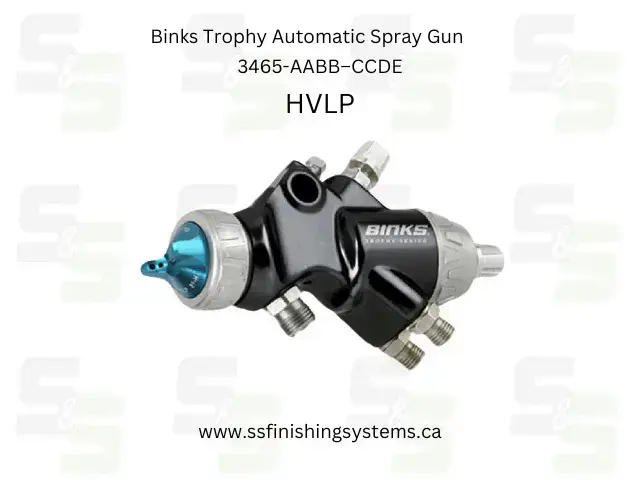

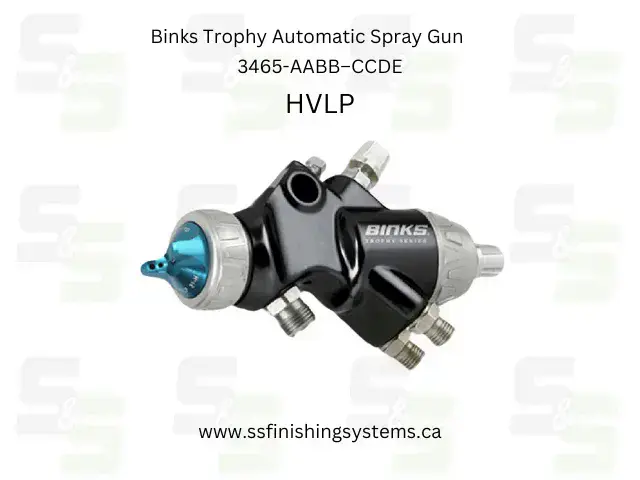

3465-HVLP thumbnail

Binks Trophy Series Automatic Spray Gun-3465

START WITH CONFIDENCE. FINISH WITH A TROPHY.

Overview

The Binks Trophy Series Automatic Spray Guns with HVLP technology are engineered for automated applications, delivering precision, efficiency, and superior finishes. Designed for use in robotic or fixed automation setups, these spray guns ensure consistent performance across a wide range of industrial applications.



Trophy Series Air Caps, Fluid Nozzles, and Needles

  • Air Caps:

Designed for uniform spray patterns and consistent atomization.

Tailored to provide optimal performance for various applications.

  • Fluid Nozzles:

Stainless Steel: Hardened for durability, lasting 20% longer; ideal for general-purpose use and a wide range of coatings.
Plastic: Suitable for thin materials like NGR stains.
Tungsten Carbide: Best for abrasive materials such as porcelain and ceramics.

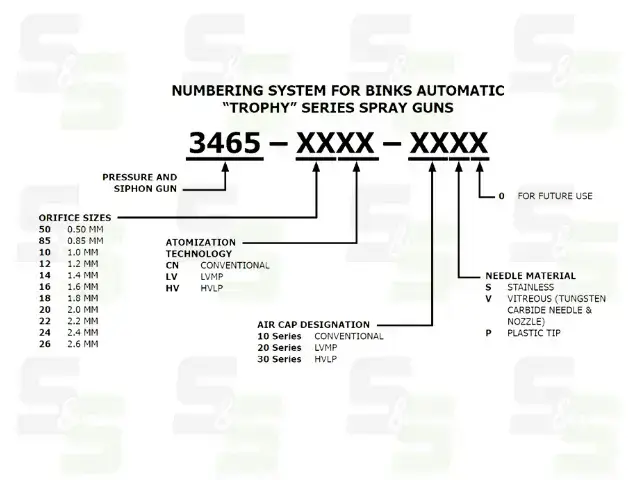

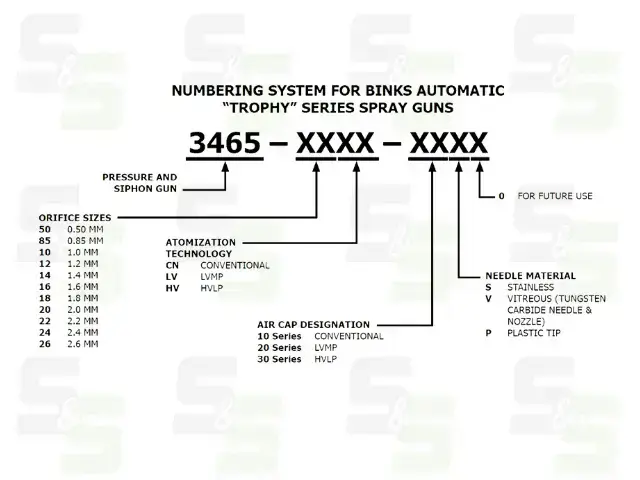

Part Number Breakdown

3465 – XXYY – AABC

3465:  The base model number, specific to PRESSURE and SIPHON Gun

XX: Orifice Sizes from 0.50mm to 2.6mm

YY: Atomization Technology HVLP, LVMP, and Conventional

AA: Air Cap Number

B: Needle material (S=Stainless, V= Tungsten Carbide, P=Plastic)

C: For futher use





Order Here
TECHNICAL SPECIFICATIONS:
Gun Body: Anodized aluminumFluid Path: Stainless steelWeight: 590 gAir Supply Connection: 1/4? NPS / BSP (m)Fluid Supply Connection: 3/8? NPS / BSP (m)
