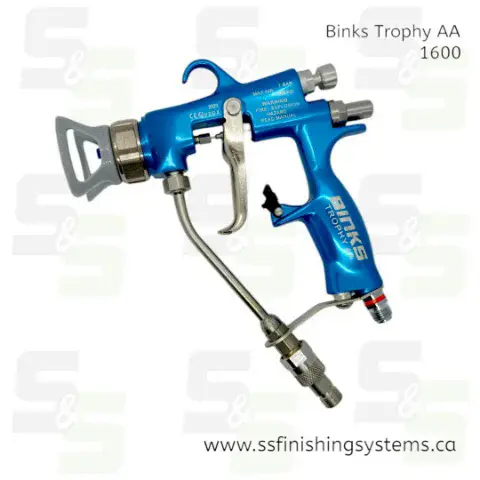

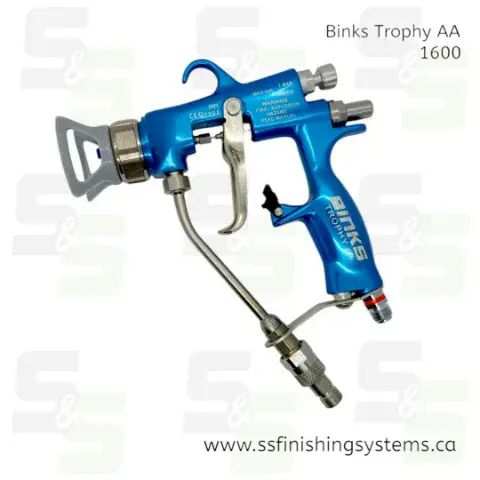

Trophy AA1600 thumbnail

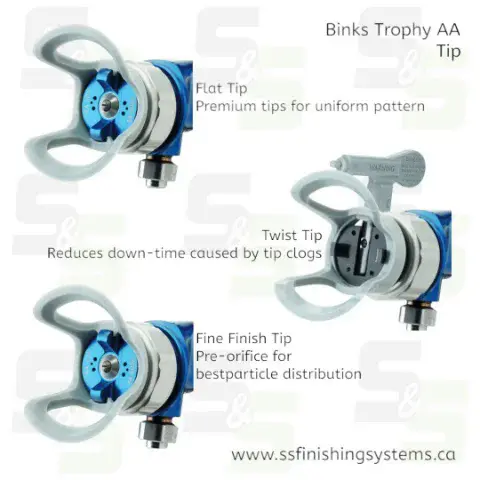

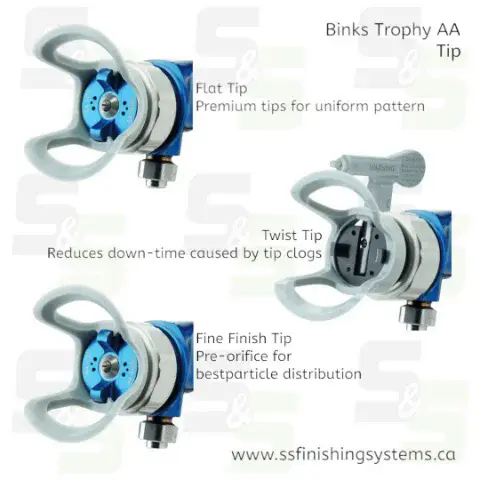

Trophy AA Tip thumbnail

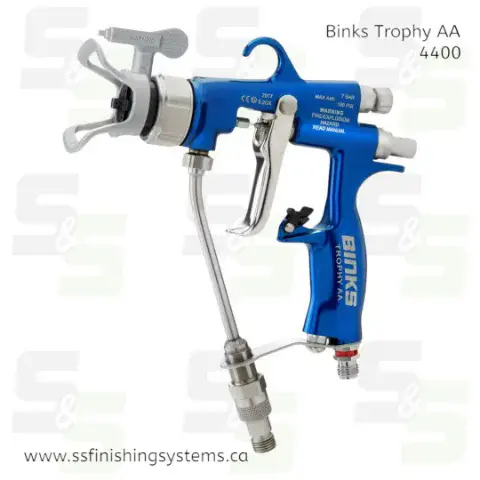

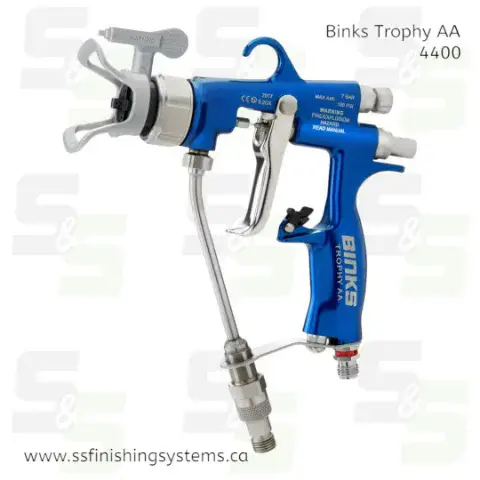

Trophy AA4400 thumbnail

Binks Trophy AA1600-AA4400

Air Assisted Airless Spray Guns

Overview

Binks Trophy AA combines industry experience, design and technology in our all-new Air Assisted Airless spray gun. Designed to handle the toughest of applications, the Trophy AA is purpose built to maximise spray quality, increase efficiency, reduce downtime and be environmentally responsible, while providing the light-weight, ergonomically sculpted fit and feel that operators demand.



Key Features

  • Air Assisted Airless Technology – Delivers fine atomization with reduced overspray.
  • Two Pressure Options – 1600 psi (AA1600) for fine finishing, 4400 psi (AA4400) for high-pressure applications.
  • High Transfer Efficiency – Saves material costs while improving finish quality.
  • Ergonomic Design – Lightweight, balanced construction for operator comfort.
  • Durable Build – Stainless steel fluid passages for compatibility with a wide range of coatings.
  • Versatile Applications – Ideal for wood, metal, plastics, and general industrial finishing.


   Model                                         Trophy AA1600                   Trophy AA4400

Mximum fluid pressure:             110 bar [1,600 psi]                 303 Bar (4,400 psi)

Gun Body material:                       Forged Aluminium                  Forged Aluminium

Fluid Path material:                      Stainless Steel                            Stainless Steel

Fluid Seat Material:                      PEEK                                               Tungsten Carbide

Fluid inlet connection:                1/4” NPS (m)                               1/4” NPS (m)

Air inlet connection:                    1/4” BSP / NPS (m)                  1/4” BSP / NPS (m)



Order Here
BINKS_Trophy AA 1660 & 4400_En.pdf Trophy-AA4400-manual.pdf Trophy-AA1600-manual.pdf
