PRODUCTS > Abrasive Helmet Cooler High Pressure
4000-01 thumbnail

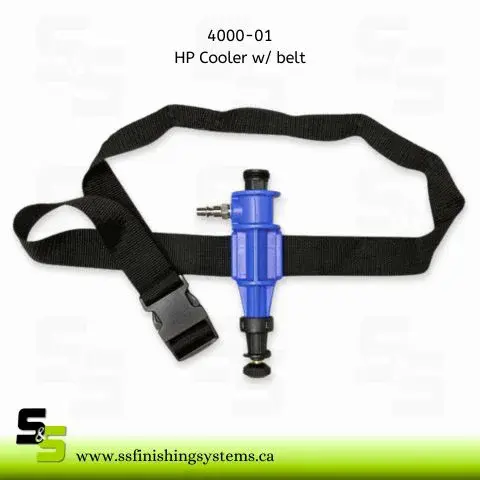

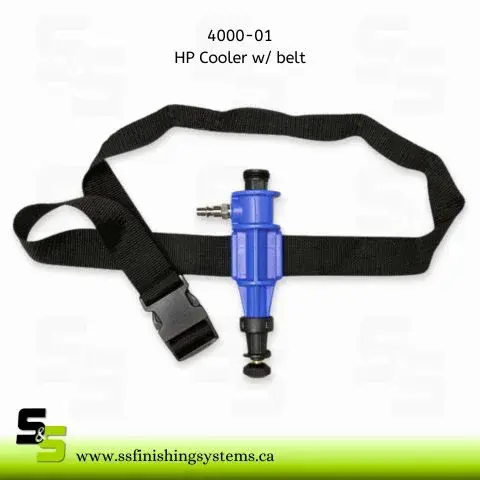

Abrasive Helmet Cooler High Pressure

VORTEX, COOLER

Overview

This valve regulates the amount of air to the helmet and adjusts the air 25 degrees cooler than the ambient air for use in hot environments.



Key Feature

  • Vortex tubes offer an effective and affordable solution for respiratory cooling.
  • They have no moving parts and work by spinning compressed air at high speed.
  • This process separates the air into hot and cold streams through centrifugal force.
  • The air temperature controller adjusts the airflow to the helmet.
  • It cools the air by 25°F (-3.8°C) below ambient temperature, making it ideal for hot environments.
  • NIOSH approved to supply a continuous flow of cool compressed air to the Nova 2000 supplied air respirator (approval number TC-19C-363)

Construction

  • Body: Plastic
  • Fitting: 1/4 in (0.63 cm) quick-connect, Rectus style, stainless steel
  • Belt: Nylon, adjustable to 50 in (127 cm) waist
  • Operating Pressure: 55–82 psi
  • Weight: 1.3 lbs (0.58 kg)
  • Color: Blue body with black control valve
  • Approved for continuous cool air supply to the Nova 2000 Supplied Air Respirator
  • NIOSH Approval Number: TC-19C-363

AIR QUALITY

  • The respirator’s air source must be clean, breathable air.
  • It should meet Grade D or better air quality standards, as defined by the Compressed Gas Association (Commodity Specification G-7.1).

Order Here
4000-01-Air-Temperature-Controller-Cooler.pdf
